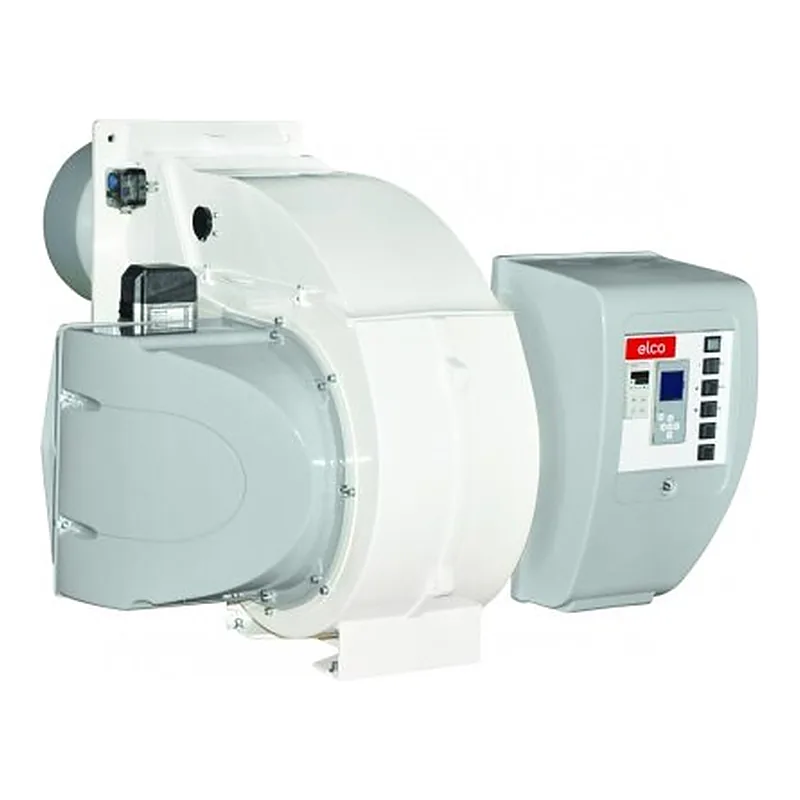

Elco EK-EVO 7.4500 G-E/BT3/KN + GT-D454-65 — spare parts
- Fuel
- Gas
- Output
- 680–5400 kW
- Parts
- 1
- Series
- EK-EVO 7.4500 · 9
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burners for Elco EK-EVO 7.4500 G-E/BT3/KN + GT-D454-65 · 1
Specifications
FuelGas
Output680–5400 kW
Fan motor power7500 W
Supply voltage220 V
Power consumption10050 W
Net weight180 kg
Protection class (IP)IP41
Flame tube length375 mm
Flame tube diameter370 mm
Flame tube typeshort
Back pressure (combustion chamber)0–16 mbar
Gas consumption6.99–11.39 m³/h
Gas train pressure49–118 mbar
Noise level82.5 dB
Operating temperature0–40 °C
Overall dimensions149.7 x 109.3 x 94.1 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesElco EK-EVO 7.4500 · 9
Parts often differ between versions of one series: pick the version named on your rating plate.
- EK-EVO 7.4500 G-E/BT3/KM
1 part · 3752752 - EK-EVO 7.4500 G-E/BT3/KM + GT-D456-100
1 part - EK-EVO 7.4500 G-E/BT3/KN
2 parts · 3752748 - EK-EVO 7.4500 G-E/BT3/KN + GT-D453-2
1 part - EK-EVO 7.4500 G-E/BT3/KN + GT-D454-65
1 part - EK-EVO 7.4500 GL-EZ3/BT3/KM/LCU
7 parts · 3760196 - EK-EVO 7.4500 GL-EZ3/BT3/KN
5 parts · 3760195 - EK-EVO 7.4500 GL-EZ3/BT3/KN + GT-D453-2
1 part - EK-EVO 7.4500 GL-EZ3/BT3/KN + GT-D454-65
1 part
Questions about Elco EK-EVO 7.4500 G-E/BT3/KN + GT-D454-65 parts
Which burners fit Elco EK-EVO 7.4500 G-E/BT3/KN + GT-D454-65?
These fit Elco EK-EVO 7.4500 G-E/BT3/KN + GT-D454-65: Elco Multiblock MBC-1900-SE-65 65311844. ↑
