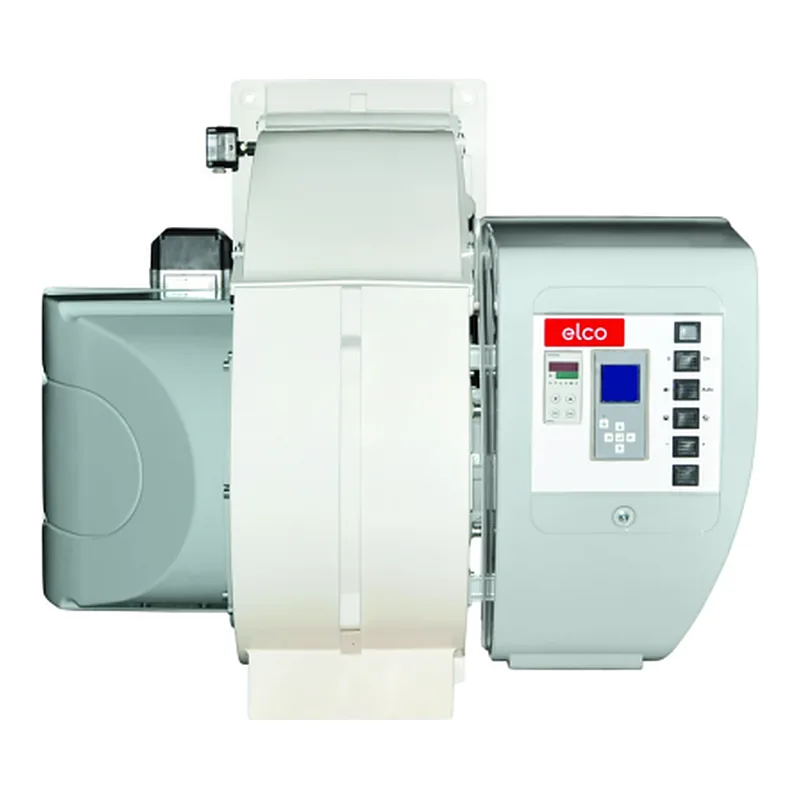

Elco EK-EVO 7.4500 GL-EZ3/BT3/KN — spare parts
- Output
- 510–4740 kW
- Parts
- 5
- Factory code
- 3760195
- Series
- EK-EVO 7.4500 · 9
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco EK-EVO 7.4500 GL-EZ3/BT3/KN · 4
—on request
—on request
—on request
Ignition cables and connectors for Elco EK-EVO 7.4500 GL-EZ3/BT3/KN · 1
—on request
Specifications
Output510–4740 kW
Gas connectionDN 65
Fan motor power7500 W
Supply voltage220 V
Power consumption10800 W
Net weight280 kg
Protection class (IP)IP41
Flame tube length375 mm
Flame tube diameter370 mm
Flame tube typeshort
Back pressure (combustion chamber)0–20 mbar
Gas consumption6.99–11.39 m³/h
Noise level82.5 dB
Operating temperature0–40 °C
Overall dimensions149.7 x 109.3 x 94.1 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesElco EK-EVO 7.4500 · 9
Parts often differ between versions of one series: pick the version named on your rating plate.
- EK-EVO 7.4500 G-E/BT3/KM
1 part · 3752752 - EK-EVO 7.4500 G-E/BT3/KM + GT-D456-100
1 part - EK-EVO 7.4500 G-E/BT3/KN
2 parts · 3752748 - EK-EVO 7.4500 G-E/BT3/KN + GT-D453-2
1 part - EK-EVO 7.4500 G-E/BT3/KN + GT-D454-65
1 part - EK-EVO 7.4500 GL-EZ3/BT3/KM/LCU
7 parts · 3760196 - EK-EVO 7.4500 GL-EZ3/BT3/KN
5 parts · 3760195 - EK-EVO 7.4500 GL-EZ3/BT3/KN + GT-D453-2
1 part - EK-EVO 7.4500 GL-EZ3/BT3/KN + GT-D454-65
1 part
Questions about Elco EK-EVO 7.4500 GL-EZ3/BT3/KN parts
Which burner components fit Elco EK-EVO 7.4500 GL-EZ3/BT3/KN?
These fit Elco EK-EVO 7.4500 GL-EZ3/BT3/KN: Elco Gas Ramp 3750511; Elco Gas Ramp 3750512; Elco Gas Ramp 3750527; Elco Gas Ramp 3750528. ↑
Which ignition cables and connectors fit Elco EK-EVO 7.4500 GL-EZ3/BT3/KN?
These fit Elco EK-EVO 7.4500 GL-EZ3/BT3/KN: Elco Ignition cable 65313731. ↑
