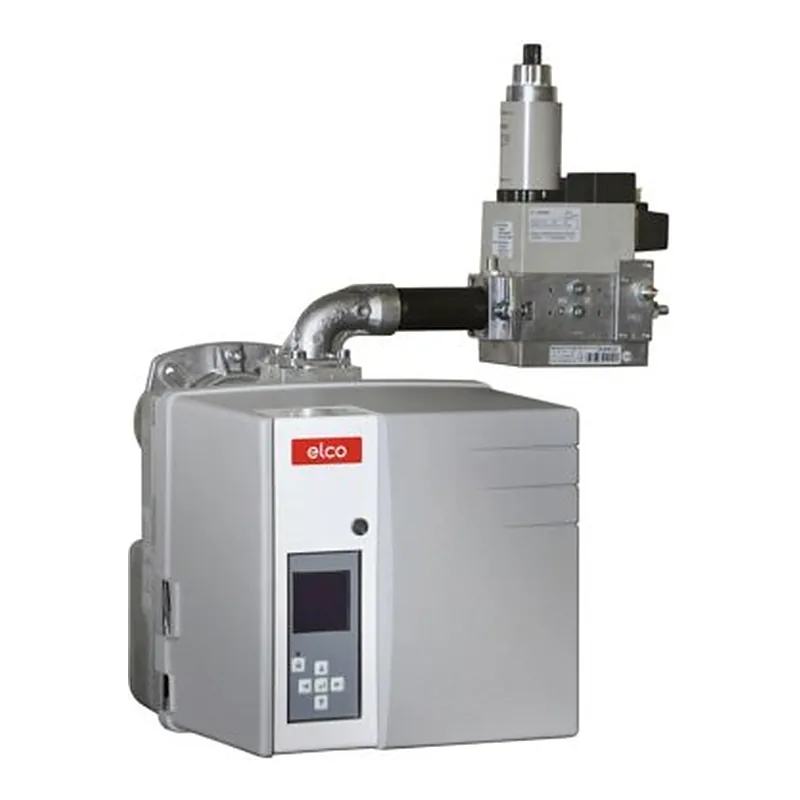

Elco VG 2.205 M E KN d411 — spare parts
- Fuel
- Gas
- Output
- 65–205 kW
- Parts
- 1
- Factory code
- 3836484
- Series
- VG 2.205 · 24
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VG 2.205 M E KN d411 · 1
What is inside Elco VG 2.205 M E KN d411
Components named in the manufacturer's documentation.
- EBI
- MB-DLE407
- MB-DLE412
- Motor 2840 min.-1
- TCG 1xx
Specifications
FuelGas
Output65–205 kW
Gas connectionRp 3/4"
Fan motor power160 W
Supply voltage220 V
Power consumption302 W
Net weight25 kg
Protection class (IP)IP21
Flame tube length150 mm
Flame tube diameter125 mm
Flame tube typeshort
Back pressure (combustion chamber)0–2.6 mbar
Gas consumption12.6–19.8 m³/h
Gas train pressure4–26.5 mbar
Noise level65 dB
Operating temperature-10–60 °C
Overall dimensions66.8 x 33.1 x 32.5 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesElco VG 2.205 · 24
Parts often differ between versions of one series: pick the version named on your rating plate.
- VG 2.205 E KL 3/4"
12 parts · 3836354 - VG 2.205 E KN 1 1/4"
12 parts · 3836351 - VG 2.205 E KN 3/4"
12 parts · 3836353 - VG 2.205 M E KL
12 parts · 3836529 - VG 2.205 M E KL d411
1 part · 3836485 - VG 2.205 M E KN
12 parts · 3836528 - VG 2.205 M E KN d411
1 part · 3836484 - VG 2.205 V E KL d345
12 parts · 3836439 - VG 2.205 V E KL d346
12 parts · 3836441 - VG 2.205 V E KL d348
12 parts · 3836437 - VG 2.205 V E KN d345
12 parts · 3836438 - VG 2.205 V E KN d346
12 parts · 3836440
All 24 versions
- VG 2.205 D E KL 1 1/4"
13 parts · 3836361 - VG 2.205 D E KL 3/4"
12 parts · 3836363 - VG 2.205 D E KN 1 1/4"
13 parts · 3836360 - VG 2.205 D E KN 3/4"
13 parts · 3836362 - VG 2.205 DP E KL d345
12 parts · 3836375 - VG 2.205 DP E KL d346
12 parts · 3836377 - VG 2.205 DP E KL d348
12 parts · 3836373 - VG 2.205 DP E KN d345
12 parts · 3836374 - VG 2.205 DP E KN d346
12 parts · 3836376 - VG 2.205 DP E KN d348
12 parts · 3836372 - VG 2.205 E KL 1 1/4"
12 parts · 3836352 - VG 2.205 E KL 3/4"
12 parts · 3836354 - VG 2.205 E KN 1 1/4"
12 parts · 3836351 - VG 2.205 E KN 3/4"
12 parts · 3836353 - VG 2.205 M E KL
12 parts · 3836529 - VG 2.205 M E KL d411
1 part · 3836485 - VG 2.205 M E KN
12 parts · 3836528 - VG 2.205 M E KN d411
1 part · 3836484 - VG 2.205 V E KL d345
12 parts · 3836439 - VG 2.205 V E KL d346
12 parts · 3836441 - VG 2.205 V E KL d348
12 parts · 3836437 - VG 2.205 V E KN d345
12 parts · 3836438 - VG 2.205 V E KN d346
12 parts · 3836440 - VG 2.205 V E KN d348
12 parts · 3836436
Questions about Elco VG 2.205 M E KN d411 parts
Which burner components fit Elco VG 2.205 M E KN d411?
These fit Elco VG 2.205 M E KN d411: Elco Gas manifold 3833507. ↑
