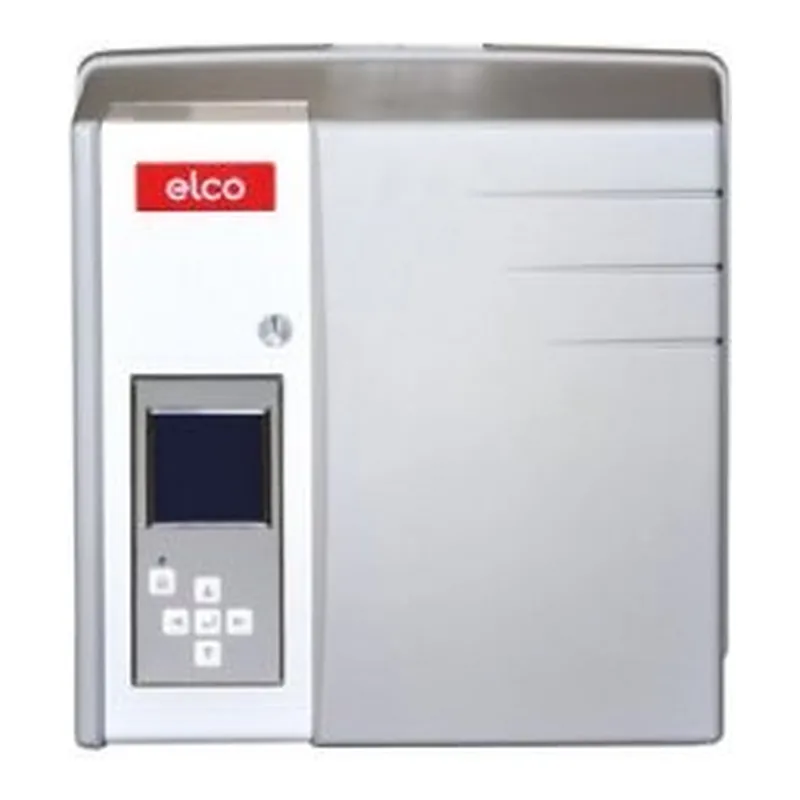

Elco VG 2.205 M E KN — spare parts
- Fuel
- Gas
- Output
- 65–205 kW
- Parts
- 12
- Factory code
- 3836528
- Series
- VG 2.205 · 24
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VG 2.205 M E KN · 4
—on request
—on request
—on request
Boiler filters, gaskets & seals for Elco VG 2.205 M E KN · 2
—on request
—on request
Boiler insulation for Elco VG 2.205 M E KN · 1
—on request
Burner pipes, flanges & connections for Elco VG 2.205 M E KN · 1
—on request
Cables for Elco VG 2.205 M E KN · 1
—on request
Ignition transformers for Elco VG 2.205 M E KN · 1
—on request
Thermometers and manometers for Elco VG 2.205 M E KN · 1
—on request
Wiring, cables & electrical components for Elco VG 2.205 M E KN · 1
—on request
What is inside Elco VG 2.205 M E KN
Components named in the manufacturer's documentation.
- ACTUATOR STE 4,5 B0.37/6-R + CABLE L600
- AIR PRESS.SWITCH 604.91 0,5-5MB+RAST
- AIR PRESSURE SWITCH BASE D32
- BT3xx
- CONTROL UNIT LCG 911 BT320
- IGNIT.ELECTRODE D8X61d4/6,4D3X17,5 130°
- IGNITION TRANSFO. EBI 2X7,5 230V
- IGNITION TRANSFO.EBI 1X11 230V+EARTH CO.
- MBC-300 SE
- MOTOR 0,13KW230V D12,7
- MOTOR 0,1KW 230V D12,7 DRILLED
- NOZZLE D24.5
- STE 4,5 B0
Specifications
FuelGas
Output65–205 kW
Fan motor power160 W
Supply voltage220 V
Power consumption302 W
Net weight25 kg
Protection class (IP)IP21
Flame tube diameter125 mm
Flame tube typeshort
Back pressure (combustion chamber)0–2.6 mbar
Gas consumption12.6–19.8 m³/h
Noise level65 dB
Operating temperature0–60 °C
Overall dimensions51.8 x 33.1 x 32.5 cm
Delivery scopewith combustion head
Other versions of this seriesElco VG 2.205 · 24
Parts often differ between versions of one series: pick the version named on your rating plate.
- VG 2.205 E KL 1 1/4"
12 parts · 3836352 - VG 2.205 E KL 3/4"
12 parts · 3836354 - VG 2.205 E KN 1 1/4"
12 parts · 3836351 - VG 2.205 E KN 3/4"
12 parts · 3836353 - VG 2.205 M E KL
12 parts · 3836529 - VG 2.205 M E KL d411
1 part · 3836485 - VG 2.205 M E KN
12 parts · 3836528 - VG 2.205 M E KN d411
1 part · 3836484 - VG 2.205 V E KL d345
12 parts · 3836439 - VG 2.205 V E KL d346
12 parts · 3836441 - VG 2.205 V E KL d348
12 parts · 3836437 - VG 2.205 V E KN d345
12 parts · 3836438
All 24 versions
- VG 2.205 D E KL 1 1/4"
13 parts · 3836361 - VG 2.205 D E KL 3/4"
12 parts · 3836363 - VG 2.205 D E KN 1 1/4"
13 parts · 3836360 - VG 2.205 D E KN 3/4"
13 parts · 3836362 - VG 2.205 DP E KL d345
12 parts · 3836375 - VG 2.205 DP E KL d346
12 parts · 3836377 - VG 2.205 DP E KL d348
12 parts · 3836373 - VG 2.205 DP E KN d345
12 parts · 3836374 - VG 2.205 DP E KN d346
12 parts · 3836376 - VG 2.205 DP E KN d348
12 parts · 3836372 - VG 2.205 E KL 1 1/4"
12 parts · 3836352 - VG 2.205 E KL 3/4"
12 parts · 3836354 - VG 2.205 E KN 1 1/4"
12 parts · 3836351 - VG 2.205 E KN 3/4"
12 parts · 3836353 - VG 2.205 M E KL
12 parts · 3836529 - VG 2.205 M E KL d411
1 part · 3836485 - VG 2.205 M E KN
12 parts · 3836528 - VG 2.205 M E KN d411
1 part · 3836484 - VG 2.205 V E KL d345
12 parts · 3836439 - VG 2.205 V E KL d346
12 parts · 3836441 - VG 2.205 V E KL d348
12 parts · 3836437 - VG 2.205 V E KN d345
12 parts · 3836438 - VG 2.205 V E KN d346
12 parts · 3836440 - VG 2.205 V E KN d348
12 parts · 3836436
Questions about Elco VG 2.205 M E KN parts
Which burner components fit Elco VG 2.205 M E KN?
These fit Elco VG 2.205 M E KN: Ecoflam Housing Fixing Screw 65300519; Elco Expansion Retainer Set 13007808; Elco Expansion Retainer Set 13010058; Elco Air Pressure Fitting 13013352. ↑
Which boiler filters, gaskets & seals fit Elco VG 2.205 M E KN?
These fit Elco VG 2.205 M E KN: Elco Ring Gasket 13018089; Elco Ring Gasket 13022908. ↑
Which boiler insulation fit Elco VG 2.205 M E KN?
These fit Elco VG 2.205 M E KN: Elco Soundproofing 13017369. ↑
Which burner pipes, flanges & connections fit Elco VG 2.205 M E KN?
These fit Elco VG 2.205 M E KN: Elco Air Pressure Fitting 13021961. ↑
Which cables fit Elco VG 2.205 M E KN?
These fit Elco VG 2.205 M E KN: Ecoflam Power Cable 65300570. ↑
Which ignition transformers fit Elco VG 2.205 M E KN?
These fit Elco VG 2.205 M E KN: Danfoss Ignition transformer 052F4058. ↑
