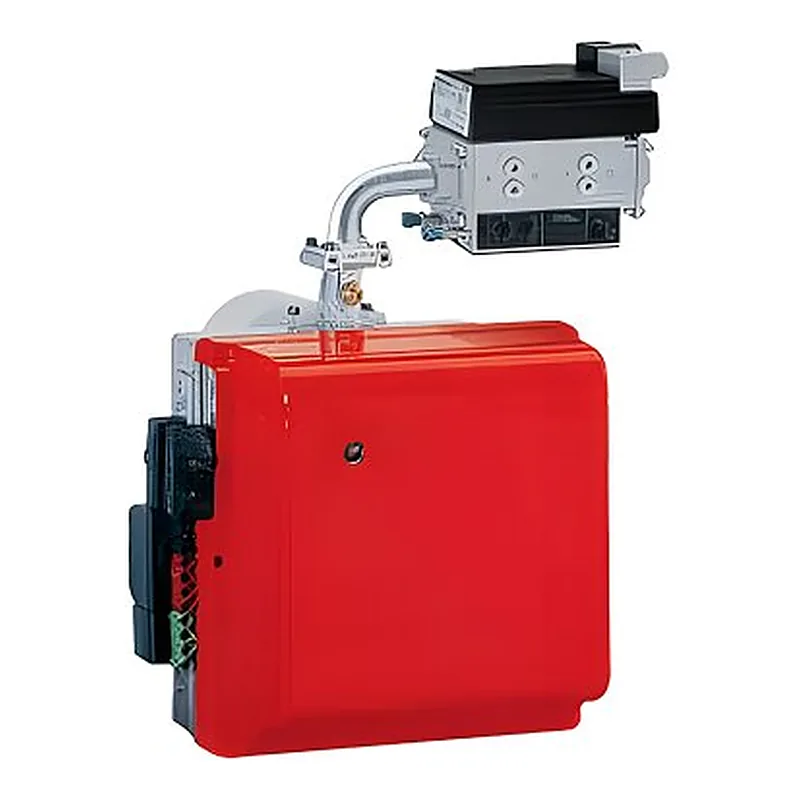

Riello Gulliver BS2/M CG 120/P — spare parts
- Fuel
- Gas
- Output
- 26–91 kW
- Parts
- 11
- Factory code
- 3762250-3970587
- Series
- Gulliver BS2/M · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello Gulliver BS2/M CG 120/P · 4
—on request
—on request
—on request
Wiring, cables & electrical components for Riello Gulliver BS2/M CG 120/P · 3
—on request
—on request
—on request
Control devices for Riello Gulliver BS2/M CG 120/P · 1
—on request
Impellers for Riello Gulliver BS2/M CG 120/P · 1
—on request
Plugs and connectors for Riello Gulliver BS2/M CG 120/P · 1
—on request
Pressure switches for Riello Gulliver BS2/M CG 120/P · 1
—on request
What is inside Riello Gulliver BS2/M CG 120/P
Components named in the manufacturer's documentation.
- LME22.2
- SQN91.57
Specifications
FuelGas
Output26–91 kW
Gas connectionRp 3/4"
Fan motor power90 W
Supply voltage220 V
Power consumption180 W
Net weight12 kg
Protection class (IP)IP40
Flame tube diameter106 mm
Flame tube typeadjustable
Back pressure (combustion chamber)-0.5–5.1 mbar
Gas consumption2.6–9.1 m³/h
Gas train pressure3–16.87 mbar
Noise level71 dB
Operating temperature0–50 °C
Overall dimensions36.6 x 28.5 x 32.5 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello Gulliver BS2/M · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- Gulliver BS2/M
11 parts · 3762250 - Gulliver BS2/M CG 120/P
11 parts · 3762250-3970587
Questions about Riello Gulliver BS2/M CG 120/P parts
Which burner components fit Riello Gulliver BS2/M CG 120/P?
These fit Riello Gulliver BS2/M CG 120/P: Riello Air damper 3002843; Riello Air Damper Regulator 3002852; Riello Gas Pressure Measurement Nipple 3005447; Riello Flame Tube 3008010. ↑
Which wiring, cables & electrical components fit Riello Gulliver BS2/M CG 120/P?
These fit Riello Gulliver BS2/M CG 120/P: Riello Capacitor 4uF 20087035; Riello Terminal Block 3002479; Riello Capacitor 3007655. ↑
Which control devices fit Riello Gulliver BS2/M CG 120/P?
These fit Riello Gulliver BS2/M CG 120/P: Riello Control Unit 3002478. ↑
Which impellers fit Riello Gulliver BS2/M CG 120/P?
These fit Riello Gulliver BS2/M CG 120/P: Riello Fan Impeller 3007476. ↑
Which plugs and connectors fit Riello Gulliver BS2/M CG 120/P?
These fit Riello Gulliver BS2/M CG 120/P: Riello 6-pin Connector 3007425. ↑
Which pressure switches fit Riello Gulliver BS2/M CG 120/P?
These fit Riello Gulliver BS2/M CG 120/P: Riello Pressure switch 3007444. ↑
