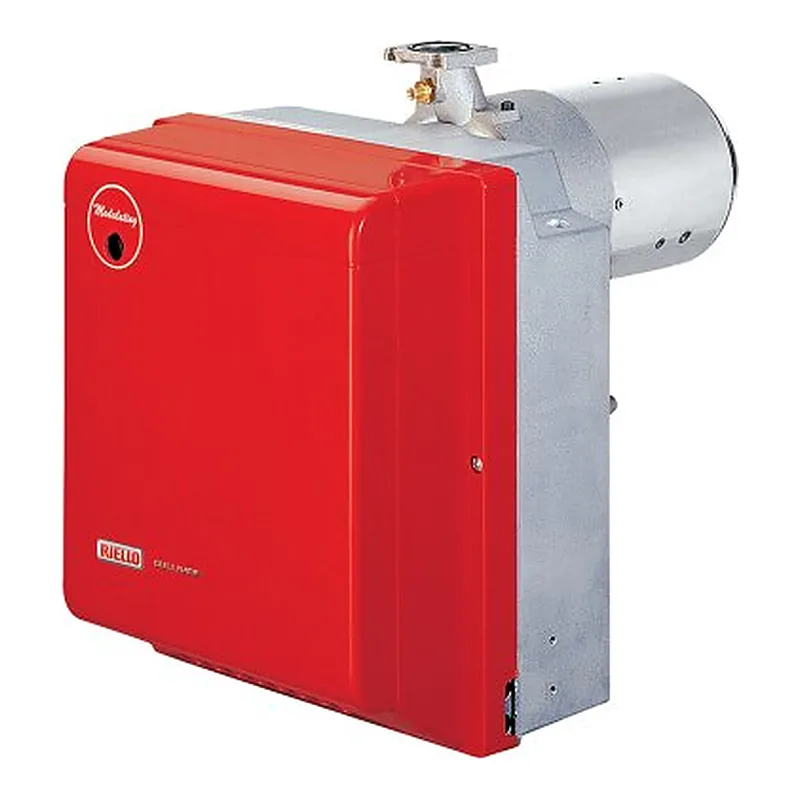

Riello Gulliver BS2/M — gas burner, photo 1

Riello Gulliver BS2/M — spare parts

Fuel
Gas
Output
26–91 kW
Parts
11
Factory code
3762250

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Riello Gulliver BS2/M · 4

Wiring, cables & electrical components for Riello Gulliver BS2/M · 3

Control devices for Riello Gulliver BS2/M · 1

Impellers for Riello Gulliver BS2/M · 1

Plugs and connectors for Riello Gulliver BS2/M · 1

Pressure switches for Riello Gulliver BS2/M · 1

What is inside Riello Gulliver BS2/M

Components named in the manufacturer's documentation.

  • 3007444
  • 3002475
  • 3002478
  • 3002585
  • 3002844
  • 3002845
  • 3002851
  • 3002853
  • 3007476
  • 3007988
  • 3008930
  • 3008931
  • 3008932
  • LGW 10 A2
  • LME22.2
  • SQN91.57
  • LME LME22.233C2RL
  • SQN SQN91.570A2793

Specifications

FuelGas
Output26–91 kW
Fan motor power90 W
Supply voltage220 V
Power consumption180 W
Net weight12 kg
Protection class (IP)IP40
Flame tube diameter106 mm
Flame tube typeadjustable
Back pressure (combustion chamber)-0.5–5.1 mbar
Gas consumption2.6–9.1 m³/h
Noise level71 dB
Operating temperature0–50 °C
Overall dimensions36.6 x 28.5 x 32.5 cm
Delivery scopewith combustion head

Other versions of this seriesRiello Gulliver BS2/M · 2

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Riello Gulliver BS2/M parts

Which burner components fit Riello Gulliver BS2/M?

These fit Riello Gulliver BS2/M: Riello Air damper 3002843; Riello Air Damper Regulator 3002852; Riello Gas Pressure Measurement Nipple 3005447; Riello Flame Tube 3008010. ↑

Which wiring, cables & electrical components fit Riello Gulliver BS2/M?

These fit Riello Gulliver BS2/M: Riello Capacitor 4uF 20087035; Riello Terminal Block 3002479; Riello Capacitor 3007655. ↑

Which control devices fit Riello Gulliver BS2/M?

These fit Riello Gulliver BS2/M: Riello Control Unit 3002478. ↑

Which impellers fit Riello Gulliver BS2/M?

These fit Riello Gulliver BS2/M: Riello Fan Impeller 3007476. ↑

Which plugs and connectors fit Riello Gulliver BS2/M?

These fit Riello Gulliver BS2/M: Riello 6-pin Connector 3007425. ↑

Which pressure switches fit Riello Gulliver BS2/M?

These fit Riello Gulliver BS2/M: Riello Pressure switch 3007444. ↑
