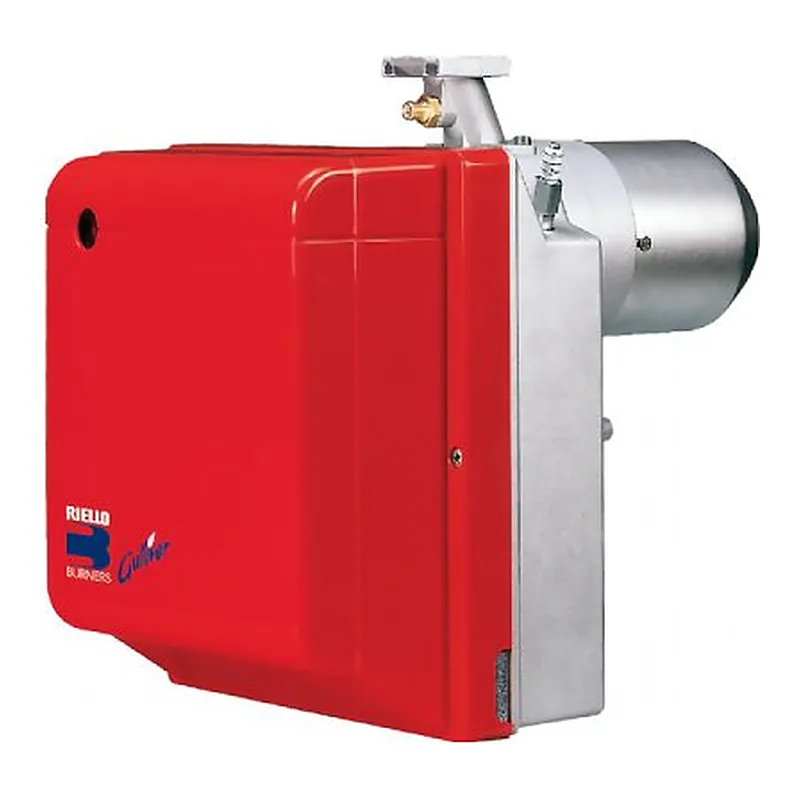

Riello Gulliver BS4 — spare parts
- Fuel
- Gas
- Output
- 110–249 kW
- Parts
- 15
- Factory code
- 3761458
- Series
- Gulliver BS4 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello Gulliver BS4 · 3
—on request
—on request
Control devices for Riello Gulliver BS4 · 2
—on request
—on request
Pressure switches for Riello Gulliver BS4 · 2
—on request
—on request
Blast tubes & combustion heads for Riello Gulliver BS4 · 1
—on request
Boiler filters, gaskets & seals for Riello Gulliver BS4 · 1
—on request
Boiler pipes, flanges & connections for Riello Gulliver BS4 · 1
—on request
Burner pipes, flanges & connections for Riello Gulliver BS4 · 1
—on request
Burners for Riello Gulliver BS4 · 1
—on request
Cables for Riello Gulliver BS4 · 1
—on request
Ignition cables and connectors for Riello Gulliver BS4 · 1
105.30 EURexcl. VAT · import VAT and duties on delivery
Motors for Riello Gulliver BS4 · 1
—on request
What is inside Riello Gulliver BS4
Components named in the manufacturer's documentation.
- 3007444
- 3008506
- MG569
- R.B.L. MG569
- 3002316
- 3007987
- 3007988
- 3008489
- 3008492
- 3008930
- 3008931
- 3008932
- Air pressure switch
- Ignition electrode
- Ionization electrode
- electrical control box
- fan motor
- gas pressure switch
- gas valve
- ignition transformer
Specifications
FuelGas
Output110–249 kW
Firing stagesSingle-stage
Fan motor power250 W
Supply voltage220 V
Power consumption530 W
Net weight17.5 kg
Protection class (IP)IP40
Flame tube diameter137 mm
Flame tube typestandard
Back pressure (combustion chamber)-0.2–3.6 mbar
Gas consumption11–25 m³/h
Noise level82 dB
Operating temperature0–40 °C
Overall dimensions44.6 x 30 x 39.2 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesRiello Gulliver BS4 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- Gulliver BS4
15 parts · 3761458 - Gulliver BS4 MB 407/1
12 parts · 3761458-3970548 - Gulliver BS4 MB 410/1
12 parts · 3761458-3970549 - Gulliver BS4 TL
13 parts · 20052612 - Gulliver BS4 TL MB 407/1
12 parts · 20052612-3970548
Questions about Riello Gulliver BS4 parts
Which burner components fit Riello Gulliver BS4?
These fit Riello Gulliver BS4: Riello Gas Pressure Measurement Nipple 3005447; Riello Fixing bracket 3007265; Riello Adjustment Screw 3007648. ↑
Which control devices fit Riello Gulliver BS4?
These fit Riello Gulliver BS4: Riello Control Unit 20137658; Riello Furnace Automation MG569 3002967. ↑
Which pressure switches fit Riello Gulliver BS4?
These fit Riello Gulliver BS4: Riello Pressure Switch Power Cable 3002972; Riello Pressure switch 3007444. ↑
Which blast tubes & combustion heads fit Riello Gulliver BS4?
These fit Riello Gulliver BS4: Riello Blast tube head 3008503. ↑
Which boiler filters, gaskets & seals fit Riello Gulliver BS4?
These fit Riello Gulliver BS4: Riello Gasket 3002560. ↑
Which boiler pipes, flanges & connections fit Riello Gulliver BS4?
These fit Riello Gulliver BS4: Riello Flange Gasket 3008500. ↑
