—on request

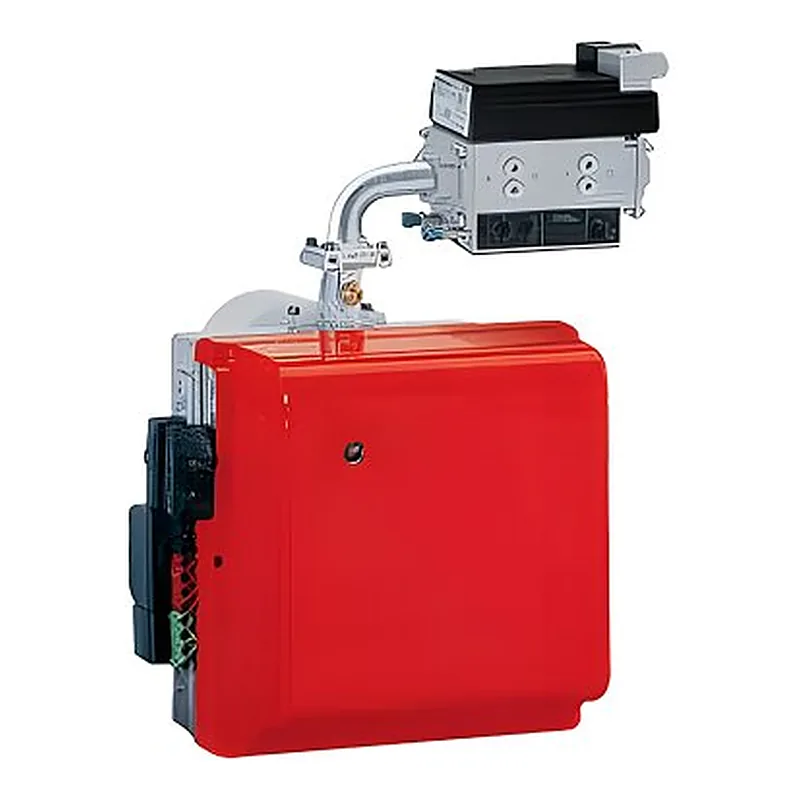

Riello Gulliver BS4/M TL CG 220/P — spare parts
- Fuel
- Gas
- Output
- 68–250 kW
- Parts
- 12
- Factory code
- 20052613-3970588
- Series
- Gulliver BS4/M · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello Gulliver BS4/M TL CG 220/P · 6
—on request
—on request
—on request
—on request
—on request
Blast tubes & combustion heads for Riello Gulliver BS4/M TL CG 220/P · 1
—on request
Burners for Riello Gulliver BS4/M TL CG 220/P · 1
—on request
Control devices for Riello Gulliver BS4/M TL CG 220/P · 1
—on request
Motors for Riello Gulliver BS4/M TL CG 220/P · 1
—on request
Plugs and connectors for Riello Gulliver BS4/M TL CG 220/P · 1
—on request
Pressure switches for Riello Gulliver BS4/M TL CG 220/P · 1
—on request
What is inside Riello Gulliver BS4/M TL CG 220/P
Components named in the manufacturer's documentation.
- LME22.2
- SQN91.57
Specifications
FuelGas
Output68–250 kW
Gas connectionRp 3/4"
Fan motor power250 W
Supply voltage220 V
Power consumption530 W
Net weight18 kg
Protection class (IP)IP40
Flame tube diameter137 mm
Flame tube typeadjustable
Back pressure (combustion chamber)-0.5–4.8 mbar
Gas consumption6.8–25 m³/h
Gas train pressure3.91–20 mbar
Noise level67 dB
Operating temperature0–50 °C
Overall dimensions62.5 x 33 x 39.2 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello Gulliver BS4/M · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- Gulliver BS4/M
12 parts · 20102637 · 3762450 - Gulliver BS4/M CG 220/P
12 parts · 3762450-3970588 - Gulliver BS4/M MB 407/1
12 parts · 3762450-3970548 - Gulliver BS4/M TL
12 parts · 20052613 - Gulliver BS4/M TL CG 220/P
12 parts · 20052613-3970588
Questions about Riello Gulliver BS4/M TL CG 220/P parts
Which burner components fit Riello Gulliver BS4/M TL CG 220/P?
These fit Riello Gulliver BS4/M TL CG 220/P: Riello Air Damper Regulator 3002852; Riello Air damper 3002866; Riello Gas Pressure Measurement Nipple 3005447; Riello Flame Tube 3008498; Riello Air Flow Distributor 3008501; Riello Tube 3012243. ↑
Which blast tubes & combustion heads fit Riello Gulliver BS4/M TL CG 220/P?
These fit Riello Gulliver BS4/M TL CG 220/P: Riello Blast tube head 3008503. ↑
Which burners fit Riello Gulliver BS4/M TL CG 220/P?
These fit Riello Gulliver BS4/M TL CG 220/P: Riello Burner Head Extension 3007992. ↑
Which control devices fit Riello Gulliver BS4/M TL CG 220/P?
These fit Riello Gulliver BS4/M TL CG 220/P: Riello Control Unit 3002478. ↑
Which motors fit Riello Gulliver BS4/M TL CG 220/P?
These fit Riello Gulliver BS4/M TL CG 220/P: Riello Electric Motor 3002853. ↑
Which plugs and connectors fit Riello Gulliver BS4/M TL CG 220/P?
These fit Riello Gulliver BS4/M TL CG 220/P: Riello 6-pin Connector 3007425. ↑
