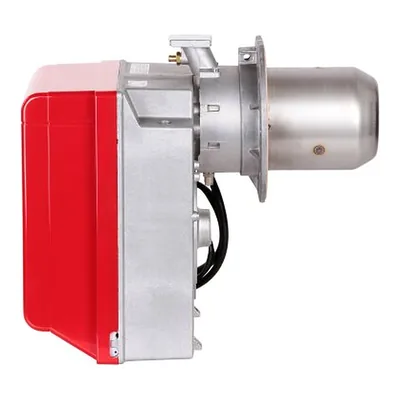

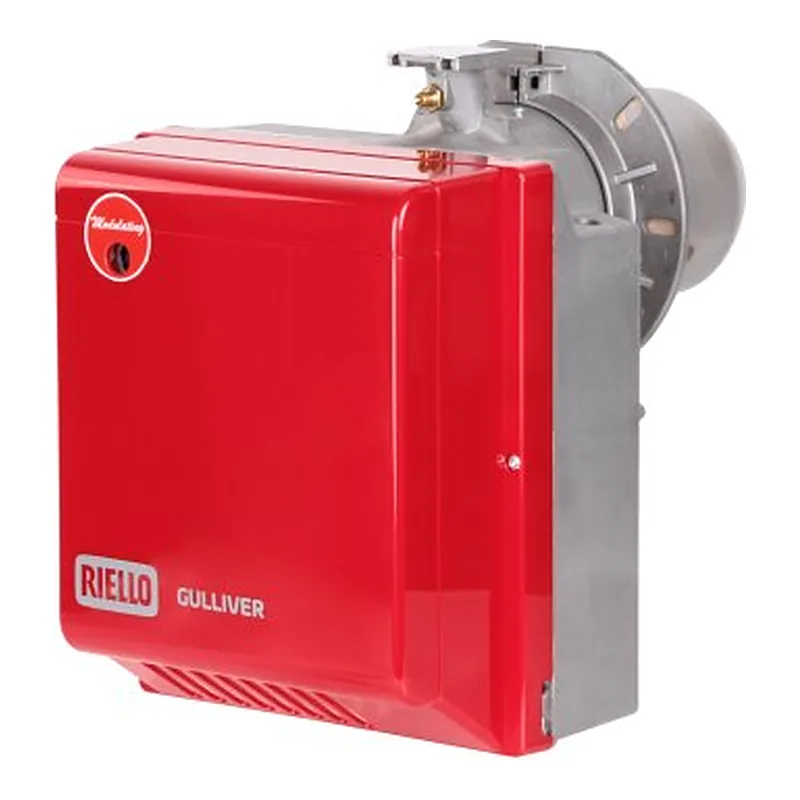

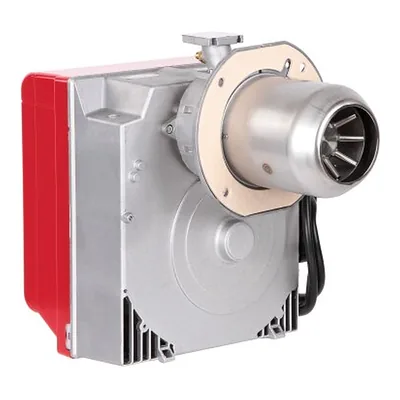

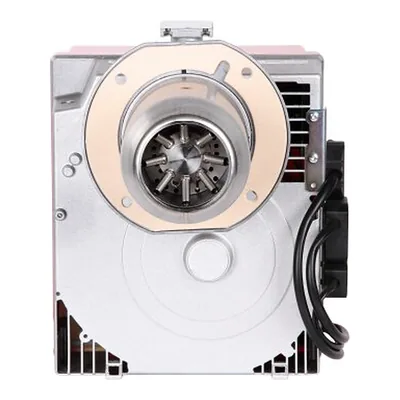

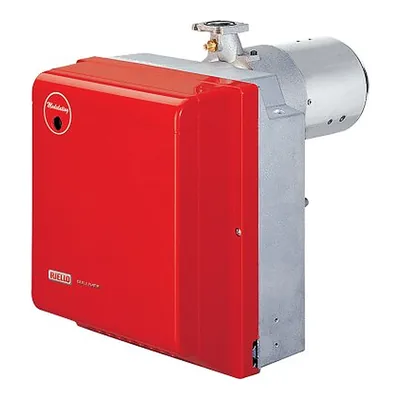

Riello Gulliver BS4/M — gas burner, photo 1

Riello Gulliver BS4/M — spare parts

Fuel
Gas
Output
68–250 kW
Parts
12
Versions
2

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Riello Gulliver BS4/M · 6

Blast tubes & combustion heads for Riello Gulliver BS4/M · 1

Burners for Riello Gulliver BS4/M · 1

Control devices for Riello Gulliver BS4/M · 1

Motors for Riello Gulliver BS4/M · 1

Plugs and connectors for Riello Gulliver BS4/M · 1

Pressure switches for Riello Gulliver BS4/M · 1

What is inside Riello Gulliver BS4/M

Components named in the manufacturer's documentation.

  • 3007444
  • 3002475
  • 3002478
  • 3002585
  • 3002844
  • 3002845
  • 3002851
  • 3002853
  • 3007476
  • 3007988
  • 3008000
  • 3008001
  • 3008002
  • 3008504
  • 3008930
  • 3008931
  • 3008932
  • LGW 10 A2
  • LME22.2
  • RWF50.2
  • RWF55.5
  • SQN91.57
  • LME LME22.233C2RL
  • SQN SQN91.570A2793

Specifications

FuelGas
Output68–250 kW
Gas connectionRp 3/4"
Fan motor power250 W
Supply voltage220 V
Power consumption530 W
Net weight18 kg
Protection class (IP)IP40
Flame tube length168 mm
Flame tube diameter137 mm
Flame tube typestandard
Back pressure (combustion chamber)0–4.8 mbar
Gas consumption6.8–25 m³/h
Gas train pressure4.1–20 mbar
Noise level67 dB
Operating temperature0–50 °C
Overall dimensions44.6 x 33 x 34.5 cm
Delivery scopewith combustion head

Versions

20102637
3762450

Other versions of this seriesRiello Gulliver BS4/M · 5

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Riello Gulliver BS4/M parts

Which burner components fit Riello Gulliver BS4/M?

These fit Riello Gulliver BS4/M: Riello Air Damper Regulator 3002852; Riello Air damper 3002866; Riello Gas Pressure Measurement Nipple 3005447; Riello Flame Tube 3008498; Riello Air Flow Distributor 3008501; Riello Tube 3012243. ↑

Which blast tubes & combustion heads fit Riello Gulliver BS4/M?

These fit Riello Gulliver BS4/M: Riello Blast tube head 3008503. ↑

Which burners fit Riello Gulliver BS4/M?

These fit Riello Gulliver BS4/M: Riello Burner Head Extension 3007992. ↑

Which control devices fit Riello Gulliver BS4/M?

These fit Riello Gulliver BS4/M: Riello Control Unit 3002478. ↑

Which motors fit Riello Gulliver BS4/M?

These fit Riello Gulliver BS4/M: Riello Electric Motor 3002853. ↑

Which plugs and connectors fit Riello Gulliver BS4/M?

These fit Riello Gulliver BS4/M: Riello 6-pin Connector 3007425. ↑
