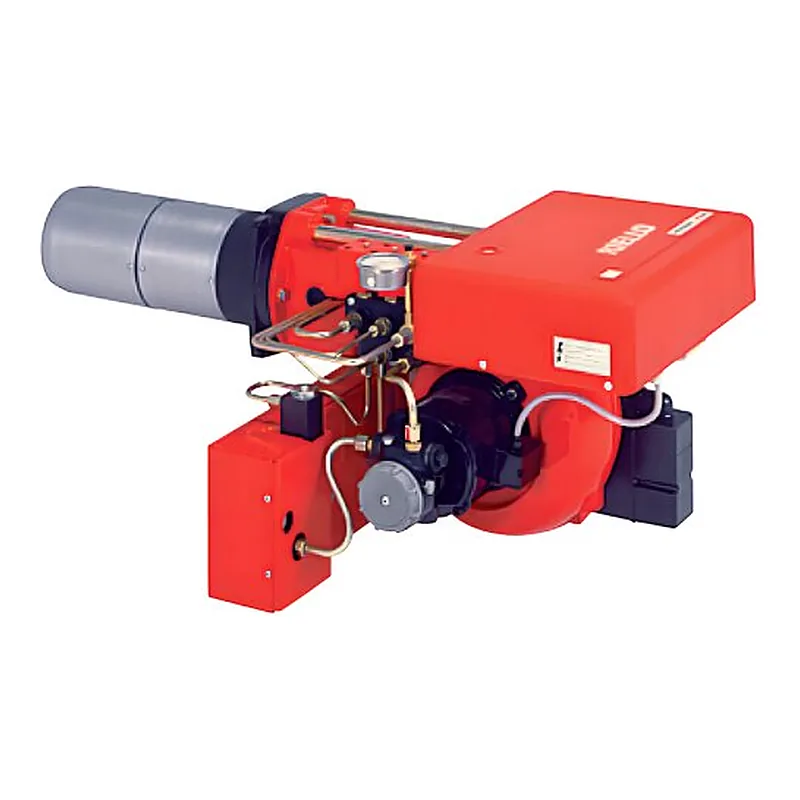

Riello PRESS 30 N TC FS1 — spare parts
- Fuel
- Oil
- Output
- 85–342 kW
- Parts
- 3
- Versions
- 3
- Series
- PRESS 30 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello PRESS 30 N TC FS1 · 1
Ignition cables and connectors for Riello PRESS 30 N TC FS1 · 1
—on request
Ionization & ignition electrodes for Riello PRESS 30 N TC FS1 · 1
—on request
Specifications
FuelOil
Output85–342 kW
Firing stagesTwo-stage
Fan motor power370 W
Supply voltage220 V
Power consumption3500 W
Net weight84 kg
Protection class (IP)IP40
Flame tube length185 mm
Flame tube diameter161 mm
Flame tube typeshort
Back pressure (combustion chamber)0–5.5 mbar
Noise level86 dB
Operating temperature0–50 °C
Overall dimensions81 x 62.5 x 39 cm
Delivery scopewith combustion head
Versions
20132092
20201572
3433723
Other versions of this seriesRiello PRESS 30 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- PRESS 30
2 parts · 20132092 · 20132093 +4 - PRESS 30 N/ECO TC FS1
8 parts · 3433823 - PRESS 30 N TC FS1
3 parts · 20132092 · 20201572 +1 - PRESS 30 N TL FS1
3 parts · 20132093 · 20201573
Questions about Riello PRESS 30 N TC FS1 parts
Which burner components fit Riello PRESS 30 N TC FS1?

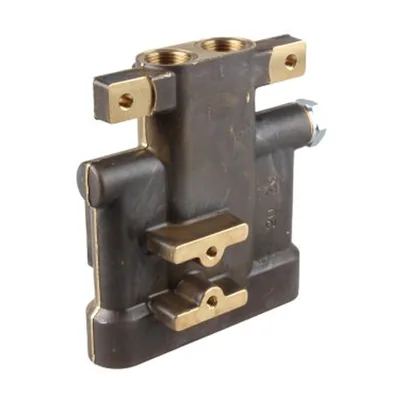

These fit Riello PRESS 30 N TC FS1: Riello Nozzle Holder 3006420. ↑
Which ignition cables and connectors fit Riello PRESS 30 N TC FS1?

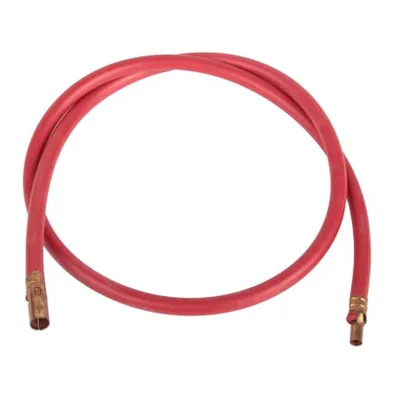

These fit Riello PRESS 30 N TC FS1: Riello Ignition cable 3013410. ↑
Which ionization & ignition electrodes fit Riello PRESS 30 N TC FS1?
These fit Riello PRESS 30 N TC FS1: Riello Electrode Extension 3000478. ↑
