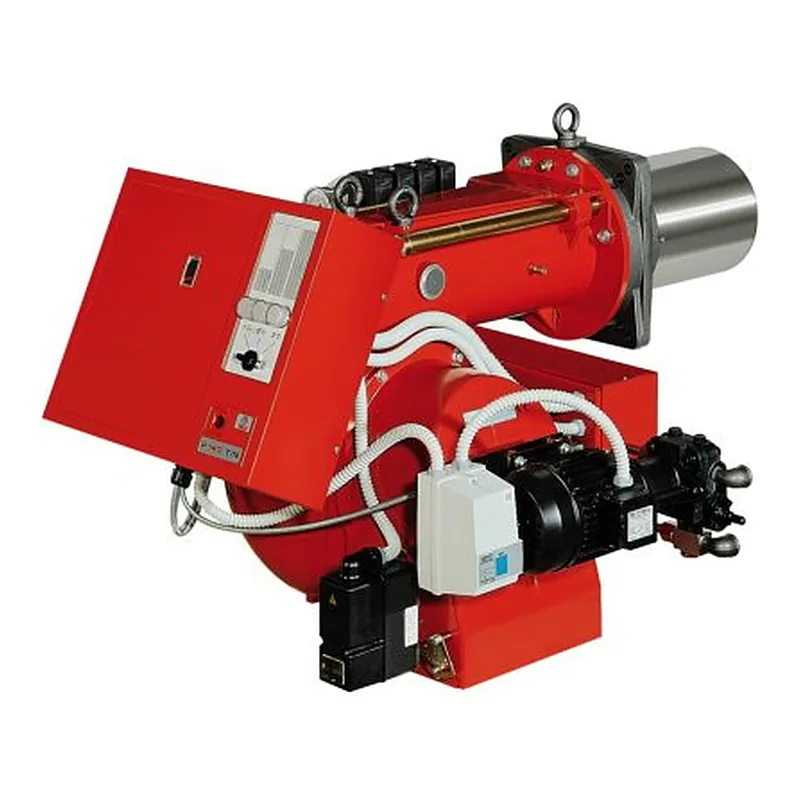

Riello PRESS 30 N/ECO TC FS1 — oil burner, photo 1

Riello PRESS 30 N/ECO TC FS1 — spare parts

Fuel
Oil
Output
171–342 kW
Parts
8
Factory code
3433823

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Boiler filters, gaskets & seals for Riello PRESS 30 N/ECO TC FS1 · 3

Burner components for Riello PRESS 30 N/ECO TC FS1 · 2

Burner pipes, flanges & connections for Riello PRESS 30 N/ECO TC FS1 · 1

Motors for Riello PRESS 30 N/ECO TC FS1 · 1

Pressure switches for Riello PRESS 30 N/ECO TC FS1 · 1

Specifications

FuelOil
Output171–342 kW
Firing stagesTwo-stage
Fan motor power370 W
Power consumption3500 W
Net weight84 kg
Protection class (IP)IP40
Flame tube length185 mm
Flame tube diameter161 mm
Flame tube typestandard
Back pressure (combustion chamber)0–5.5 mbar
Operating temperature0–50 °C
Overall dimensions81 x 62.5 x 39 cm
Delivery scopewith combustion head

Other versions of this seriesRiello PRESS 30 · 4

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Riello PRESS 30 N/ECO TC FS1 parts

Which boiler filters, gaskets & seals fit Riello PRESS 30 N/ECO TC FS1?

These fit Riello PRESS 30 N/ECO TC FS1: Riello Sealing Rings Set 3007025; Riello Copper Washers 3007077; Riello Sealing Rings Set 3007169. ↑

Which burner components fit Riello PRESS 30 N/ECO TC FS1?

These fit Riello PRESS 30 N/ECO TC FS1: Riello Fixing Bracket 3003495; Riello Washer Set 3007082. ↑

Which burner pipes, flanges & connections fit Riello PRESS 30 N/ECO TC FS1?

These fit Riello PRESS 30 N/ECO TC FS1: Riello Transition Nipple G3/4" - G1" 3009040. ↑

Which motors fit Riello PRESS 30 N/ECO TC FS1?

These fit Riello PRESS 30 N/ECO TC FS1: Riello Motor 3003568. ↑

Which pressure switches fit Riello PRESS 30 N/ECO TC FS1?

These fit Riello PRESS 30 N/ECO TC FS1: Dungs Pressure switch 232048. ↑
