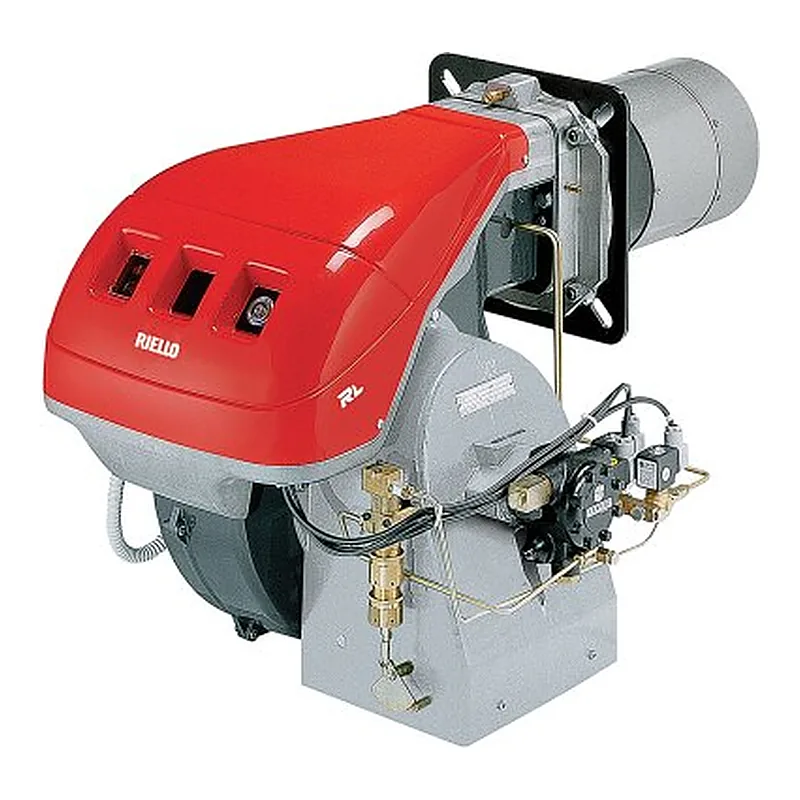

Riello RL 190 TC FS1 — spare parts
- Fuel
- Oil
- Output
- 759–2443 kW
- Parts
- 13
- Factory code
- 3475613
- Series
- RL 190 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burners for Riello RL 190 TC FS1 · 3
—on request
—on request
Boiler filters, gaskets & seals for Riello RL 190 TC FS1 · 1
—on request
Burner components for Riello RL 190 TC FS1 · 1
—on request
Burner pipes, flanges & connections for Riello RL 190 TC FS1 · 1
—on request
Control boxes for Riello RL 190 TC FS1 · 1
203.61 EURexcl. VAT · import VAT and duties on delivery
Control panels and displays for Riello RL 190 TC FS1 · 1
—on request
Ignition transformers for Riello RL 190 TC FS1 · 1
—on request
Motors for Riello RL 190 TC FS1 · 1
—on request
Oil pumps for Riello RL 190 TC FS1 · 1
—on request
Oil valves for Riello RL 190 TC FS1 · 1
—on request
Sensors and switches for Riello RL 190 TC FS1 · 1
—on request
What is inside Riello RL 190 TC FS1
Components named in the manufacturer's documentation.
Specifications
FuelOil
Output759–2443 kW
Firing stagesTwo-stage
Supply voltage380 V
Power consumption5870 W
Net weight70 kg
Protection class (IP)IP44
Flame tube length370 mm
Flame tube diameter222 mm
Flame tube typestandard
Back pressure (combustion chamber)-0.9–17 mbar
Noise level83.9 dB
Operating temperature0–40 °C
Overall dimensions108.2 x 75.6 x 55.5 cm
Delivery scopewith combustion head
Other versions of this seriesRiello RL 190 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RL 190
2 parts · 3475613 - RL 190 TC FS1
13 parts · 3475613
Questions about Riello RL 190 TC FS1 parts
Which burners fit Riello RL 190 TC FS1?
These fit Riello RL 190 TC FS1: Riello Burner Base 3003784; Riello Burner Tube 3012561; Riello Burner Cover 3013119. ↑
Which boiler filters, gaskets & seals fit Riello RL 190 TC FS1?
These fit Riello RL 190 TC FS1: Riello Insulation Gasket 3012572. ↑
Which burner components fit Riello RL 190 TC FS1?

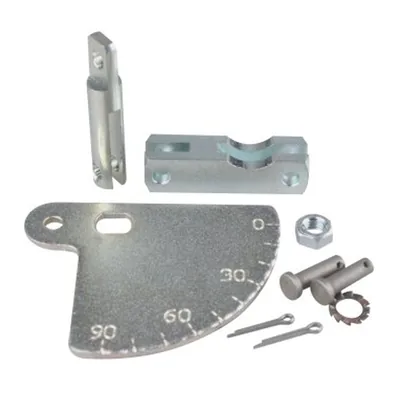

These fit Riello RL 190 TC FS1: Riello Air Damper 3012574. ↑
Which burner pipes, flanges & connections fit Riello RL 190 TC FS1?
These fit Riello RL 190 TC FS1: Riello Connecting Fitting 3006722. ↑
Which control boxes fit Riello RL 190 TC FS1?
These fit Riello RL 190 TC FS1: Riello Burner control RMO88.53C2 3013071. ↑
Which control panels and displays fit Riello RL 190 TC FS1?
These fit Riello RL 190 TC FS1: Riello Status Indicator Panel 3003786. ↑
