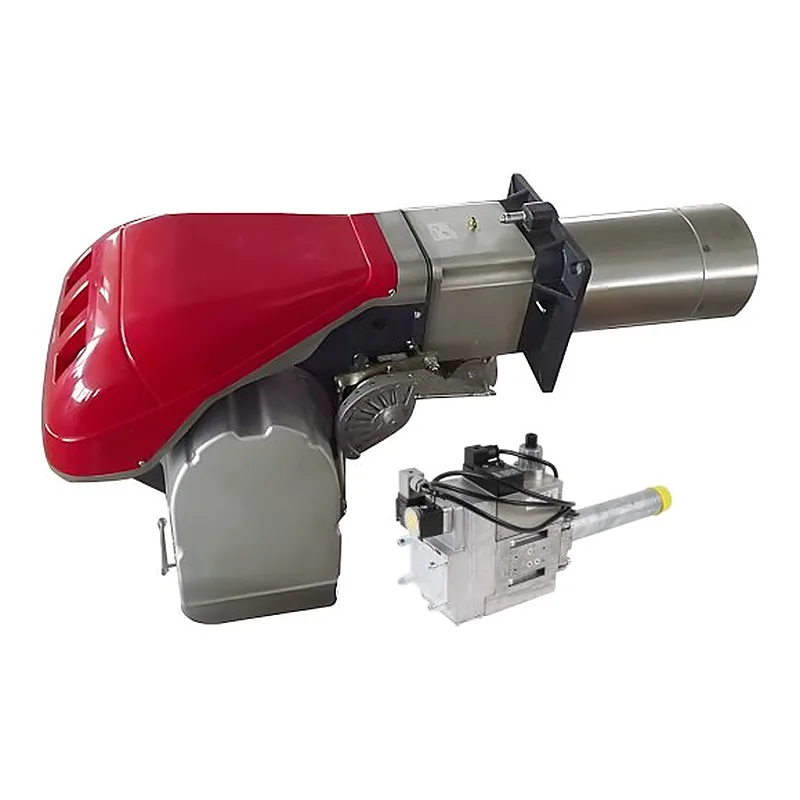

Riello RS 150/M TC FS1 MB 415/1 CT RT 30 — spare parts
- Fuel
- Gas
- Output
- 300–1850 kW
- Parts
- 3
- Factory code
- 20044638-3970198-3000843
- Series
- RS 150/M · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 150/M TC FS1 MB 415/1 CT RT 30 · 3
—on request
—on request
What is inside Riello RS 150/M TC FS1 MB 415/1 CT RT 30
Components named in the manufacturer's documentation.
- SQN31.76...
- RMG M 88.62C2
Specifications
FuelGas
Output300–1850 kW
Gas connectionRp 1 1/2"
Fan motor power3000 W
Power consumption4000 W
Net weight86 kg
Protection class (IP)IP40
Flame tube length280 mm
Flame tube diameter189 mm
Flame tube typeshort
Back pressure (combustion chamber)-1–12 mbar
Gas consumption30–185 m³/h
Gas train pressure24.8–81 mbar
Noise level94.1 dB
Operating temperature0–40 °C
Overall dimensions112 x 67.5 x 59 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello RS 150/M · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 150/M TC FS1
14 parts · 20044638 - RS 150/M TC FS1 MB 415/1 CT RT 30
3 parts · 20044638-3970198-3000843 - RS 150/M TL FS1
14 parts · 20044639 - RS 150/M TL FS1 MB 415/1 CT RT 30
3 parts · 20044639-3970198-3000843
Questions about Riello RS 150/M TC FS1 MB 415/1 CT RT 30 parts
Which burner components fit Riello RS 150/M TC FS1 MB 415/1 CT RT 30?
These fit Riello RS 150/M TC FS1 MB 415/1 CT RT 30: Riello Gas Manifold 3970181; Riello Gas Manifold 3970182; Riello Gas Manifold 3970198. ↑
