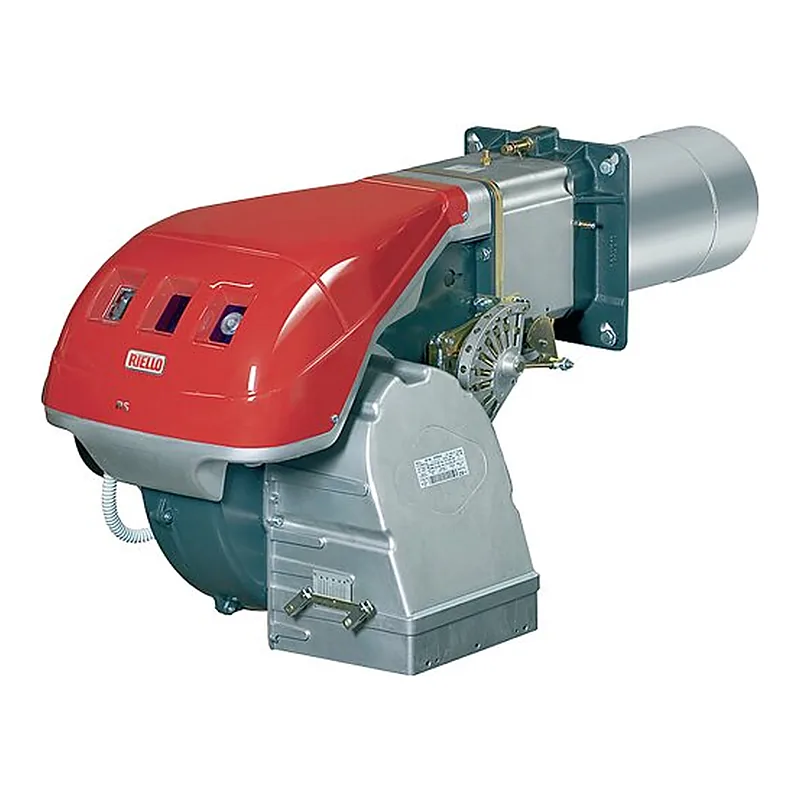

Riello RS 150/M TC FS1 — spare parts
- Fuel
- Gas
- Output
- 300–1850 kW
- Parts
- 14
- Factory code
- 20044638
- Series
- RS 150/M · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 150/M TC FS1 · 3
—on request
—on request
Burner pipes, flanges & connections for Riello RS 150/M TC FS1 · 3
—on request
—on request
—on request
Ionization & ignition electrodes for Riello RS 150/M TC FS1 · 2
—on request
—on request
Pressure switches for Riello RS 150/M TC FS1 · 2
—on request
—on request
Boiler filters, gaskets & seals for Riello RS 150/M TC FS1 · 1
—on request
Boiler pipes, flanges & connections for Riello RS 150/M TC FS1 · 1
—on request
Control devices for Riello RS 150/M TC FS1 · 1
—on request
Venturi tubes for Riello RS 150/M TC FS1 · 1
—on request
What is inside Riello RS 150/M TC FS1
Components named in the manufacturer's documentation.
Specifications
FuelGas
Output300–1850 kW
Fan motor power3000 W
Power consumption4000 W
Net weight86 kg
Protection class (IP)IP40
Flame tube length280 mm
Flame tube diameter189 mm
Flame tube typeshort
Back pressure (combustion chamber)-1–12 mbar
Gas consumption30–185 m³/h
Noise level94.1 dB
Operating temperature0–40 °C
Overall dimensions112 x 67.5 x 59 cm
Delivery scopewith combustion head
Other versions of this seriesRiello RS 150/M · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 150/M TC FS1
14 parts · 20044638 - RS 150/M TC FS1 MB 415/1 CT RT 30
3 parts · 20044638-3970198-3000843 - RS 150/M TL FS1
14 parts · 20044639 - RS 150/M TL FS1 MB 415/1 CT RT 30
3 parts · 20044639-3970198-3000843
Questions about Riello RS 150/M TC FS1 parts
Which burner components fit Riello RS 150/M TC FS1?
These fit Riello RS 150/M TC FS1: Riello Gas Pressure Measurement Nipple 3012049; Riello Adjustment Rod 3012054; Riello Gas Manifold 3970182. ↑
Which burner pipes, flanges & connections fit Riello RS 150/M TC FS1?
These fit Riello RS 150/M TC FS1: Riello Gas Connection Flange 3006803; Riello External Gas Pipe 3012041; Riello Gas Elbow 3012042. ↑
Which ionization & ignition electrodes fit Riello RS 150/M TC FS1?
These fit Riello RS 150/M TC FS1: Riello Ignition Electrode 3012016; Riello Ignition Electrode 3012017. ↑
Which pressure switches fit Riello RS 150/M TC FS1?
These fit Riello RS 150/M TC FS1: Riello Pressure switch 3003660; Riello Pressure switch 3007444. ↑
Which boiler filters, gaskets & seals fit Riello RS 150/M TC FS1?
These fit Riello RS 150/M TC FS1: Riello Insulation Gasket 3012735. ↑
Which boiler pipes, flanges & connections fit Riello RS 150/M TC FS1?
These fit Riello RS 150/M TC FS1: Riello Flange Gasket 3003991. ↑
