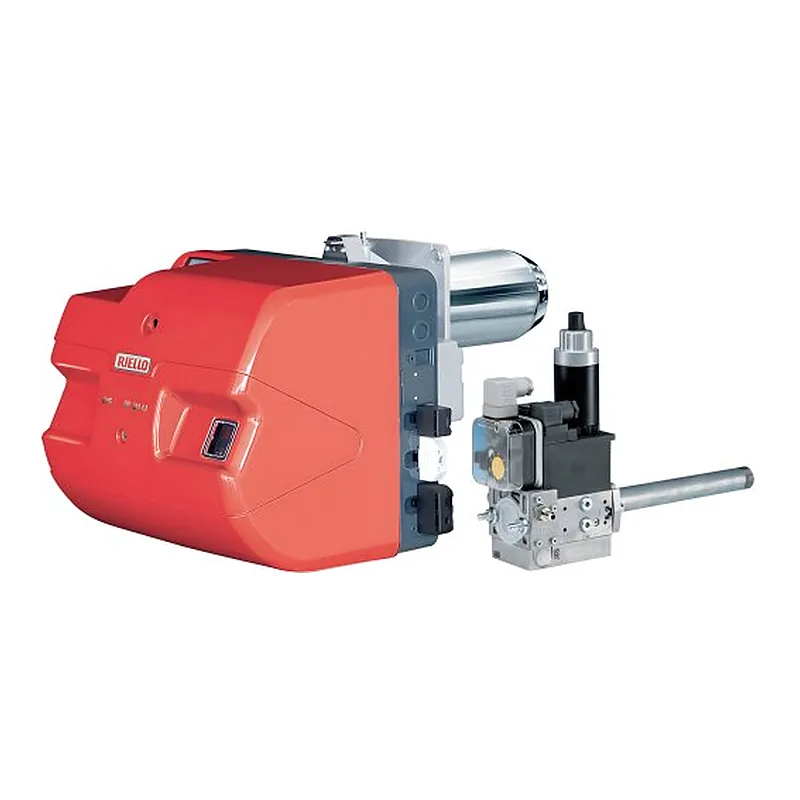

Riello RS 35/E BLU TC FS1 MB 407/1 - RT 52 — spare parts
- Fuel
- Gas
- Output
- 70–480 kW
- Parts
- 6
- Factory code
- 3910810-3970599
- Series
- RS 35/E · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 35/E BLU TC FS1 MB 407/1 - RT 52 · 5
—on request
—on request
—on request
—on request
Ionization & ignition electrodes for Riello RS 35/E BLU TC FS1 MB 407/1 - RT 52 · 1
—on request
What is inside Riello RS 35/E BLU TC FS1 MB 407/1 - RT 52
Components named in the manufacturer's documentation.
- Servomotors
- control box for the air/fuel ratio
- pressure switches
Specifications
FuelGas
Output70–480 kW
Gas connectionRp 3/4"
Fan motor power420 W
Supply voltage220 V
Power consumption700 W
Net weight33 kg
Protection class (IP)IP40
Flame tube length230 mm
Flame tube diameter152 mm
Flame tube typestandard
Back pressure (combustion chamber)-1–8 mbar
Gas consumption7–48 m³/h
Gas train pressure20–97.3 mbar
Noise level81 dB
Operating temperature0–40 °C
Overall dimensions73.8 x 44.2 x 42.2 cm
Delivery scopewith combustion head, with gas train
Additional featurescontinuous ventilation
Other versions of this seriesRiello RS 35/E · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 35/E BLU TC FS1
11 parts · 3910810 - RS 35/E BLU TC FS1 MB 407/1 - RT 52
6 parts · 3910810-3970599
Questions about Riello RS 35/E BLU TC FS1 MB 407/1 - RT 52 parts
Which burner components fit Riello RS 35/E BLU TC FS1 MB 407/1 - RT 52?
These fit Riello RS 35/E BLU TC FS1 MB 407/1 - RT 52: Riello Continuous Ventilation Block 3010094; Riello Grated Disc 3012605; Riello Gas Manifold 3970250; Riello Gas Manifold 3970256; Riello Gas Manifold 3970599. ↑
Which ionization & ignition electrodes fit Riello RS 35/E BLU TC FS1 MB 407/1 - RT 52?
These fit Riello RS 35/E BLU TC FS1 MB 407/1 - RT 52: Riello Ionization Electrode 3013725. ↑
