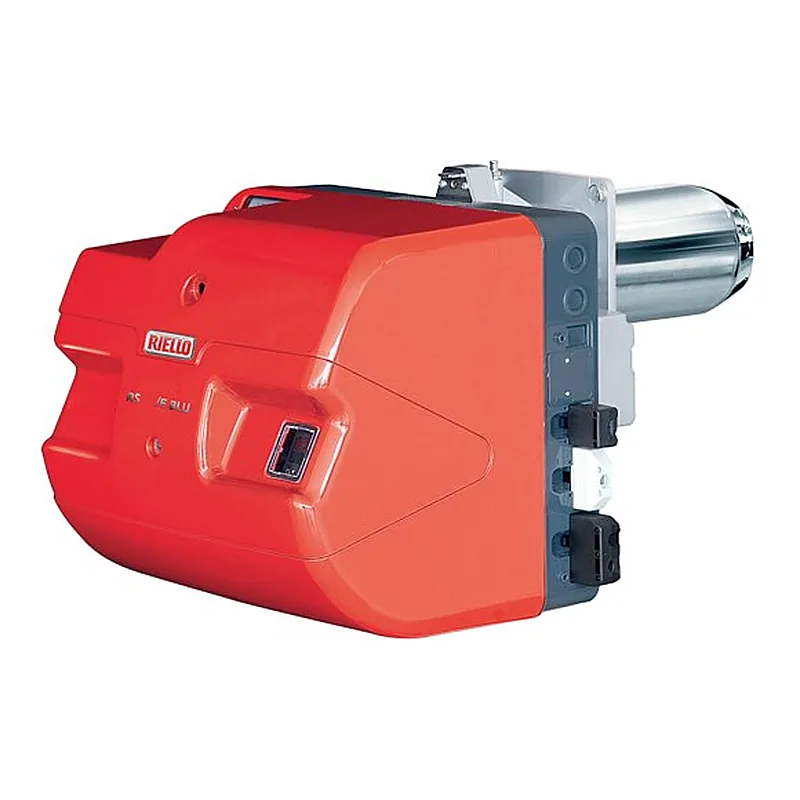

Riello RS 35/E BLU TC FS1 — spare parts
- Fuel
- Gas
- Output
- 70–480 kW
- Parts
- 11
- Factory code
- 3910810
- Series
- RS 35/E · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 35/E BLU TC FS1 · 3
—on request
—on request
Wiring, cables & electrical components for Riello RS 35/E BLU TC FS1 · 2
—on request
—on request
Actuators for Riello RS 35/E BLU TC FS1 · 1
—on request
Boiler insulation for Riello RS 35/E BLU TC FS1 · 1
—on request
Burner pipes, flanges & connections for Riello RS 35/E BLU TC FS1 · 1
—on request
Control devices for Riello RS 35/E BLU TC FS1 · 1
—on request
Control panels and displays for Riello RS 35/E BLU TC FS1 · 1
—on request
Motors for Riello RS 35/E BLU TC FS1 · 1
—on request
What is inside Riello RS 35/E BLU TC FS1
Components named in the manufacturer's documentation.
- 3014017
- 3002316
- 3002475
- 3013490
- 3013744
- 3013751
- 3013752
- 3013814
- 3013821
- 3014013
- 3014014
- 3014016
- 3014037
- 3014038
- 3014039
- 3014123
- 3014164
- Servomotors
- control box for the air/fuel ratio
- pressure switches
Specifications
FuelGas
Output70–480 kW
Fan motor power420 W
Supply voltage220 V
Power consumption700 W
Net weight33 kg
Protection class (IP)IP40
Flame tube length230 mm
Flame tube diameter152 mm
Flame tube typestandard
Back pressure (combustion chamber)-1–8 mbar
Gas consumption7–48 m³/h
Noise level81 dB
Operating temperature0–40 °C
Overall dimensions73.8 x 44.2 x 42.2 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Other versions of this seriesRiello RS 35/E · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 35/E BLU TC FS1
11 parts · 3910810 - RS 35/E BLU TC FS1 MB 407/1 - RT 52
6 parts · 3910810-3970599
Questions about Riello RS 35/E BLU TC FS1 parts
Which burner components fit Riello RS 35/E BLU TC FS1?
These fit Riello RS 35/E BLU TC FS1: Riello Cotter Pin 3003816; Riello Intake Air Guide 3013745; Riello Gas Pressure Measurement Nipple 3013953. ↑
Which wiring, cables & electrical components fit Riello RS 35/E BLU TC FS1?
These fit Riello RS 35/E BLU TC FS1: Riello Capacitor 12 uF 3003767; Riello Anti-interference Filter 3012160. ↑
Which actuators fit Riello RS 35/E BLU TC FS1?
These fit Riello RS 35/E BLU TC FS1: Riello Actuator 3014017. ↑
Which boiler insulation fit Riello RS 35/E BLU TC FS1?
These fit Riello RS 35/E BLU TC FS1: Riello Soundproofing 20014917. ↑
Which burner pipes, flanges & connections fit Riello RS 35/E BLU TC FS1?
These fit Riello RS 35/E BLU TC FS1: Riello Gas Connection Flange 3006802. ↑
Which control devices fit Riello RS 35/E BLU TC FS1?
These fit Riello RS 35/E BLU TC FS1: Riello Combustion Manager REC27.100A2 3013927. ↑
