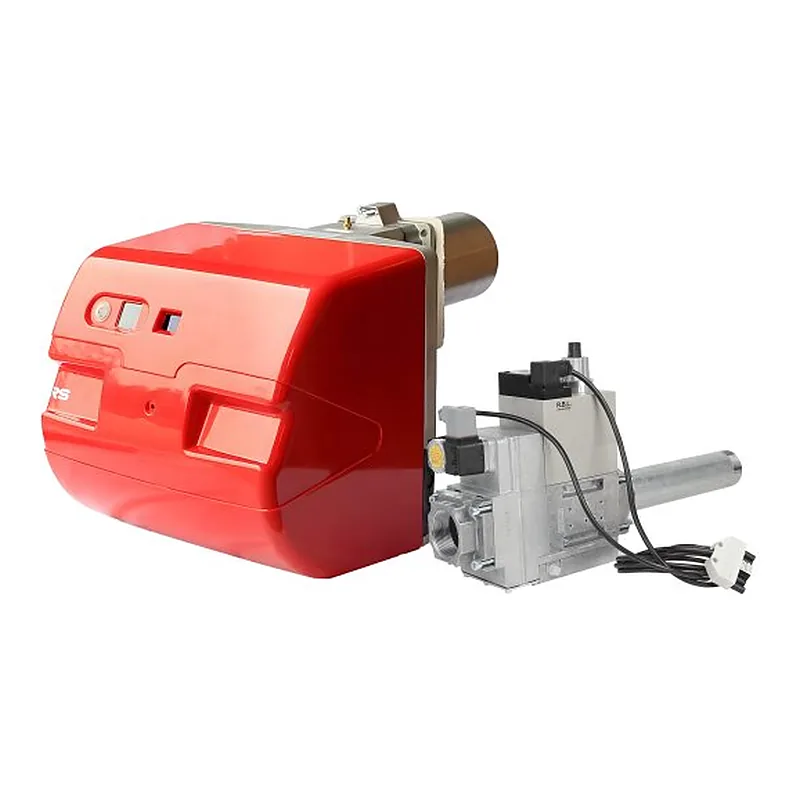

Riello RS 64/M MZ TC FS1 MB 420/1 - RSM 30 — spare parts
- Fuel
- Gas
- Output
- 150–850 kW
- Parts
- 5
- Factory code
- 3788910-3970233
- Series
- RS 64/M · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 64/M MZ TC FS1 MB 420/1 - RSM 30 · 4
—on request
—on request
—on request
Boiler insulation for Riello RS 64/M MZ TC FS1 MB 420/1 - RSM 30 · 1
—on request
What is inside Riello RS 64/M MZ TC FS1 MB 420/1 - RSM 30
Components named in the manufacturer's documentation.
- 882 T
- Flame sensor probe
- Flammenfühler
- Gas-höchstdruckwächter
- Gasdrossel
- Ignition electrode
- Mindestluftdruckwächter
- Minimum air pressure switch
- RS 64/M MZ
- Servomotor
- Zündelektrode
- gas butterfly valve
Specifications
FuelGas
Output150–850 kW
Gas connectionRp 2"
Fan motor power1100 W
Power consumption1500 W
Net weight41 kg
Protection class (IP)IP40
Flame tube length250 mm
Flame tube diameter179 mm
Flame tube typestandard
Back pressure (combustion chamber)0–8 mbar
Gas consumption15–85 m³/h
Gas train pressure5–24.7 mbar
Noise level87 dB
Operating temperature0–40 °C
Overall dimensions89 x 53.3 x 49 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello RS 64/M · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 64/M MZ TC FS1
15 parts · 3788910 - RS 64/M MZ TC FS1 MB 412/1 - RT 20
5 parts · 3788910-3970144-3000843 - RS 64/M MZ TC FS1 MB 420/1 - RSM 30
5 parts · 3788910-3970233 - RS 64/M MZ TL
15 parts · 20169331 · 3788911 - RS 64/M MZ TL MB 412/1 - RT 20
3 parts · 3788911-3970144-3000843
Questions about Riello RS 64/M MZ TC FS1 MB 420/1 - RSM 30 parts
Which burner components fit Riello RS 64/M MZ TC FS1 MB 420/1 - RSM 30?

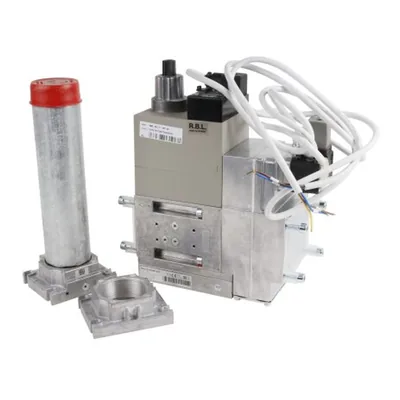

These fit Riello RS 64/M MZ TC FS1 MB 420/1 - RSM 30: Riello Gas Manifold 3970144; Riello Gas Manifold 3970181; Riello Gas Manifold 3970182; Riello Gas Manifold MB 420/1 3970233. ↑
Which boiler insulation fit Riello RS 64/M MZ TC FS1 MB 420/1 - RSM 30?
These fit Riello RS 64/M MZ TC FS1 MB 420/1 - RSM 30: Riello Soundproofing Material 3003830. ↑
