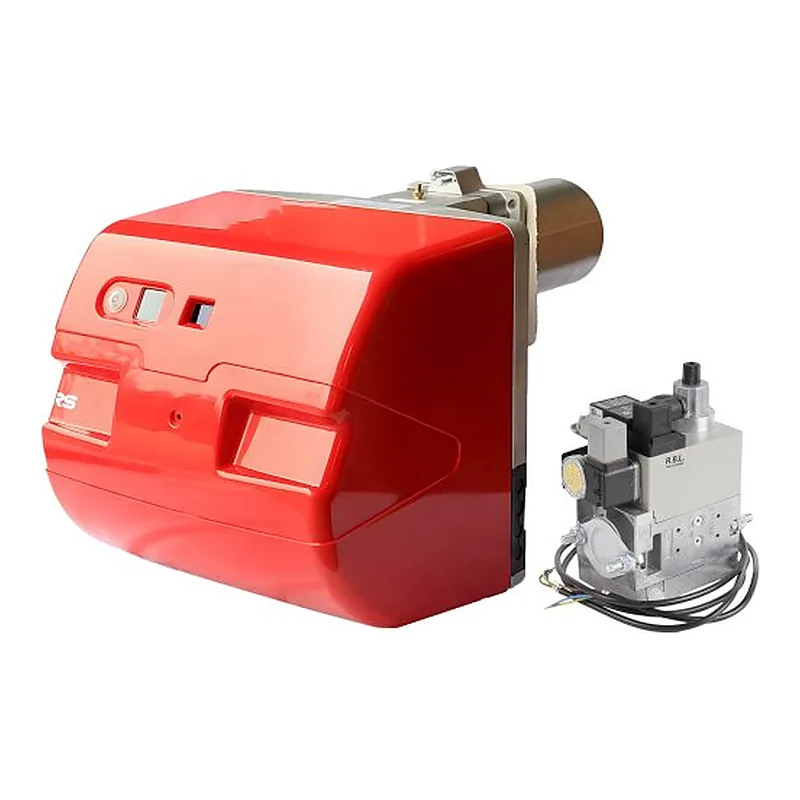

Riello RS 64/M MZ TL MB 412/1 - RT 20 — spare parts
- Fuel
- Gas
- Output
- 150–850 kW
- Parts
- 3
- Factory code
- 3788911-3970144-3000843
- Series
- RS 64/M · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 64/M MZ TL MB 412/1 - RT 20 · 3
—on request
—on request
What is inside Riello RS 64/M MZ TL MB 412/1 - RT 20
Components named in the manufacturer's documentation.
- 882 T
- Flame sensor probe
- Flammenfühler
- Gas-höchstdruckwächter
- Gasdrossel
- Ignition electrode
- Mindestluftdruckwächter
- Minimum air pressure switch
- RS 64/M MZ
- Servomotor
- Zündelektrode
- gas butterfly valve
Specifications
FuelGas
Output150–850 kW
Gas connectionRp 1 1/2"
Fan motor power1100 W
Power consumption1500 W
Net weight42 kg
Protection class (IP)IP40
Flame tube length385 mm
Flame tube diameter179 mm
Flame tube typeextended
Back pressure (combustion chamber)0–8 mbar
Gas consumption15–85 m³/h
Gas train pressure15.1–54.8 mbar
Noise level87 dB
Operating temperature0–40 °C
Overall dimensions102.5 x 53.3 x 49 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello RS 64/M · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 64/M MZ TC FS1
15 parts · 3788910 - RS 64/M MZ TC FS1 MB 412/1 - RT 20
5 parts · 3788910-3970144-3000843 - RS 64/M MZ TC FS1 MB 420/1 - RSM 30
5 parts · 3788910-3970233 - RS 64/M MZ TL
15 parts · 20169331 · 3788911 - RS 64/M MZ TL MB 412/1 - RT 20
3 parts · 3788911-3970144-3000843
Questions about Riello RS 64/M MZ TL MB 412/1 - RT 20 parts
Which burner components fit Riello RS 64/M MZ TL MB 412/1 - RT 20?
These fit Riello RS 64/M MZ TL MB 412/1 - RT 20: Riello Gas Manifold 3970144; Riello Gas Manifold 3970181; Riello Gas Manifold 3970182. ↑
