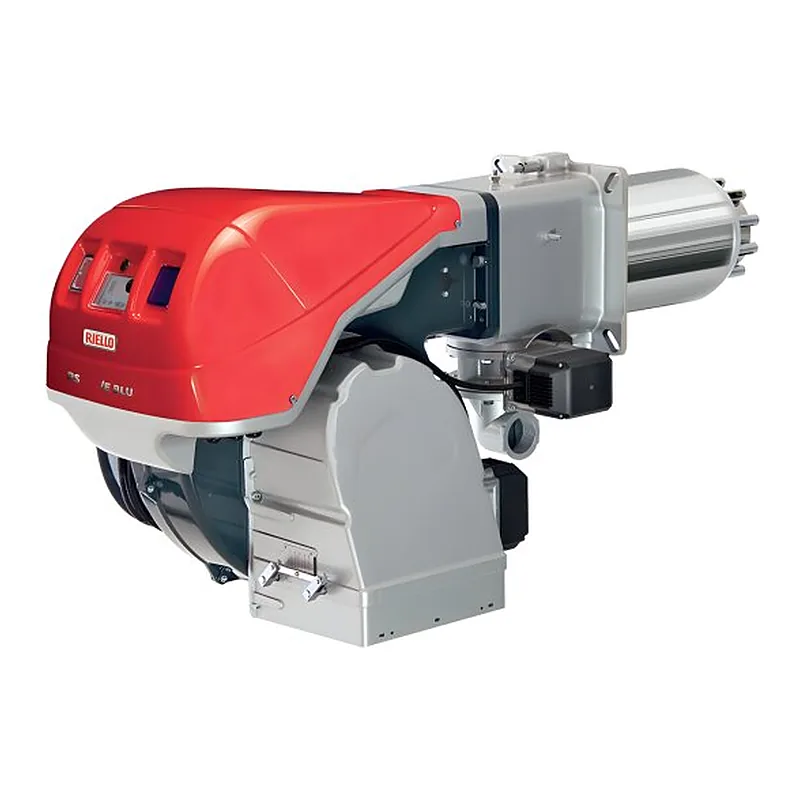

Riello RS 68/E BLU TC FS1 MB 412/1 - RT 52 — spare parts
- Fuel
- Gas
- Output
- 150–860 kW
- Parts
- 6
- Factory code
- 3897432-3970256-3000843
- Series
- RS 68/E · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 68/E BLU TC FS1 MB 412/1 - RT 52 · 5
—on request
—on request
—on request
—on request
Burner pipes, flanges & connections for Riello RS 68/E BLU TC FS1 MB 412/1 - RT 52 · 1
—on request
What is inside Riello RS 68/E BLU TC FS1 MB 412/1 - RT 52
Components named in the manufacturer's documentation.
- control box
- pressure switches
Specifications
FuelGas
Output150–860 kW
Gas connectionR 1 1/2"
Fan motor power1500 W
Power consumption1500 W
Net weight78 kg
Protection class (IP)IP40
Flame tube length255 mm
Flame tube diameter189 mm
Flame tube typestandard
Back pressure (combustion chamber)0–9.5 mbar
Gas consumption15–86 m³/h
Gas train pressure12.5–55 mbar
Noise level77 dB
Operating temperature0–40 °C
Overall dimensions109.5 x 51.1 x 55.5 cm
Delivery scopewith combustion head, with gas train
Additional featurescontinuous ventilation
Other versions of this seriesRiello RS 68/E · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 68/E BLU TC FS1
14 parts · 3897432 - RS 68/E BLU TC FS1 MB 412/1 - RT 52
6 parts · 3897432-3970256-3000843
Questions about Riello RS 68/E BLU TC FS1 MB 412/1 - RT 52 parts
Which burner components fit Riello RS 68/E BLU TC FS1 MB 412/1 - RT 52?
These fit Riello RS 68/E BLU TC FS1 MB 412/1 - RT 52: Riello Continuous Ventilation Block 3010094; Riello Gas Manifold 3970250; Riello Gas Manifold 3970256; Riello Gas Manifold 3970257; Riello Gas Manifold MB 410/1 3970258. ↑
Which burner pipes, flanges & connections fit Riello RS 68/E BLU TC FS1 MB 412/1 - RT 52?
These fit Riello RS 68/E BLU TC FS1 MB 412/1 - RT 52: Riello Gas Manifold Adapter 3000843. ↑
