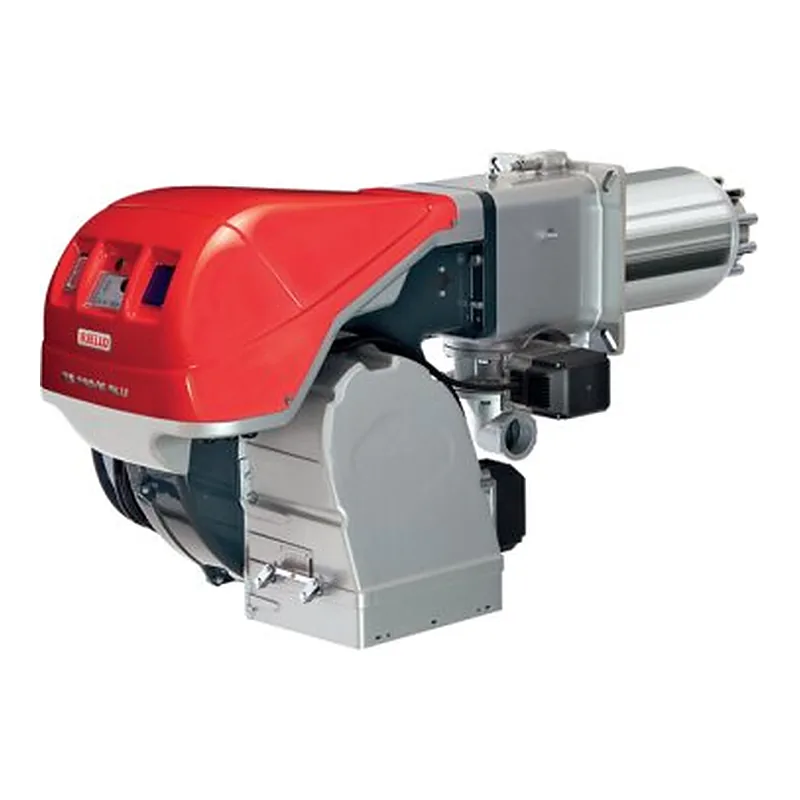

Riello RS 68/E BLU TC FS1 — gas burner, photo 1

Riello RS 68/E BLU TC FS1 — spare parts

Fuel
Gas
Output
150–860 kW
Parts
14
Factory code
3897432

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Ignition components for Riello RS 68/E BLU TC FS1 · 2

Ionization & ignition electrodes for Riello RS 68/E BLU TC FS1 · 2

Pressure switches for Riello RS 68/E BLU TC FS1 · 2

Actuators for Riello RS 68/E BLU TC FS1 · 1

Boiler filters, gaskets & seals for Riello RS 68/E BLU TC FS1 · 1

Boiler pipes, flanges & connections for Riello RS 68/E BLU TC FS1 · 1

Burner components for Riello RS 68/E BLU TC FS1 · 1

Burner pipes, flanges & connections for Riello RS 68/E BLU TC FS1 · 1

Ignition cables and connectors for Riello RS 68/E BLU TC FS1 · 1

Motors for Riello RS 68/E BLU TC FS1 · 1

Venturi tubes for Riello RS 68/E BLU TC FS1 · 1

What is inside Riello RS 68/E BLU TC FS1

Components named in the manufacturer's documentation.

  • 3003660
  • 3007444
  • 3012017
  • 3003322
  • 3003481
  • 3003847
  • 3003864
  • 3003891
  • 3003949
  • 3003960
  • 3003961
  • 3003967
  • 3003968
  • 3003991
  • 3005482
  • 3006954
  • 3012013
  • 3012014
  • 3012018
  • 3012035
  • 3012036
  • 3012040
  • 3012041
  • 3012176

Specifications

FuelGas
Output150–860 kW
Fan motor power1500 W
Power consumption1500 W
Net weight78 kg
Protection class (IP)IP40
Flame tube length255 mm
Flame tube diameter189 mm
Flame tube typestandard
Back pressure (combustion chamber)0–9.5 mbar
Gas consumption15–86 m³/h
Noise level77 dB
Operating temperature0–40 °C
Overall dimensions109.5 x 51.1 x 55.5 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation

Other versions of this seriesRiello RS 68/E · 2

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Riello RS 68/E BLU TC FS1 parts

Which ignition components fit Riello RS 68/E BLU TC FS1?

These fit Riello RS 68/E BLU TC FS1: Riello Igniter BG0910A + RF9.62 3003960; Riello Igniter BG1210A + RF9.10 3003961. ↑

Which ionization & ignition electrodes fit Riello RS 68/E BLU TC FS1?

These fit Riello RS 68/E BLU TC FS1: Riello Ignition Electrode 3012017; Riello Ionization Electrode 3012176. ↑

Which pressure switches fit Riello RS 68/E BLU TC FS1?

These fit Riello RS 68/E BLU TC FS1: Riello Pressure switch 3003660; Riello Pressure switch 3007444. ↑

Which actuators fit Riello RS 68/E BLU TC FS1?

These fit Riello RS 68/E BLU TC FS1: Riello Actuator Clutch 3013938. ↑

Which boiler filters, gaskets & seals fit Riello RS 68/E BLU TC FS1?

These fit Riello RS 68/E BLU TC FS1: Riello Insulation Gasket 3012735. ↑

Which boiler pipes, flanges & connections fit Riello RS 68/E BLU TC FS1?

These fit Riello RS 68/E BLU TC FS1: Riello Flange Gasket 3003991. ↑
