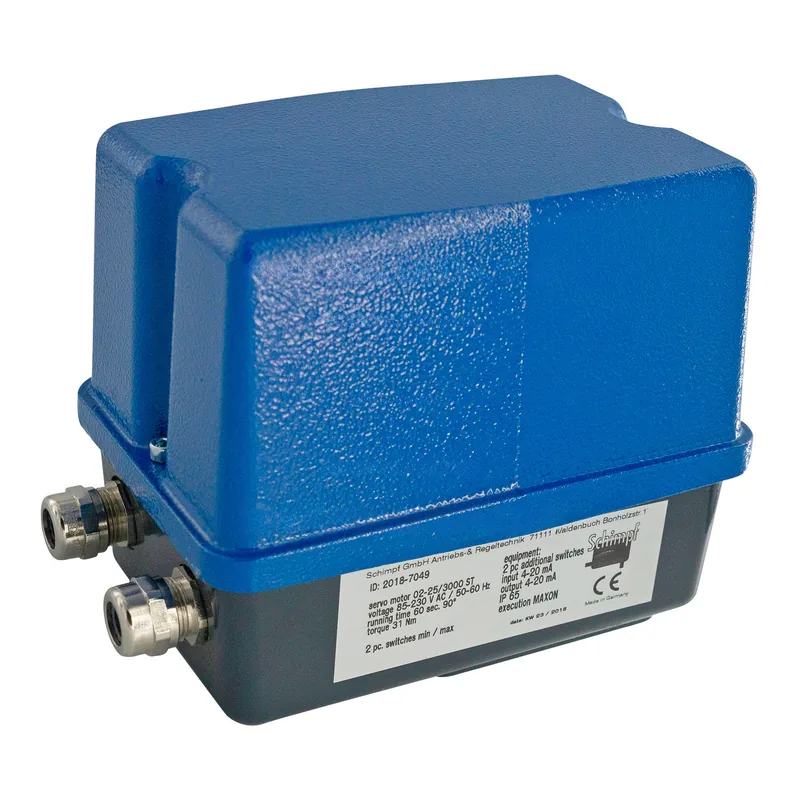

Schimpf Servo motor 02-25/3000 ST 862.712.006

The Schimpf Servo motor 02-25/3000 ST (SKU 862. 712. 006) is an actuator designed for precise control of dampers, valves, and other actuators in burner and heating systems. It is used in industrial burners, boiler plants, and automation systems requiring control of air and gas dampers. The motor receives a control signal (typically three-point, 0-10 V, or on/off) and translates it into rotational movement to adjust air/fuel ratio or flow in heating circuits. It is commonly found on air dampers or gas butterfly valves in modulation loops.

Parts of this type are selected by torque, running time, shaft or coupling pattern, angle of rotation, and the presence of integral auxiliary switches for position feedback or limit signalling. When replacing a unit, verify the mounting pattern, control signal compatibility, and mechanical interface (shaft diameter, keyway, or coupling) to ensure a direct swap without adapter parts.

Typical failure modes include stripped gear trains after prolonged cycling, worn end switches, or a seized output shaft if the driven component has been left stationary for a long season. Equipment may fail to modulate correctly, stick in one position, or show erratic positioning.
