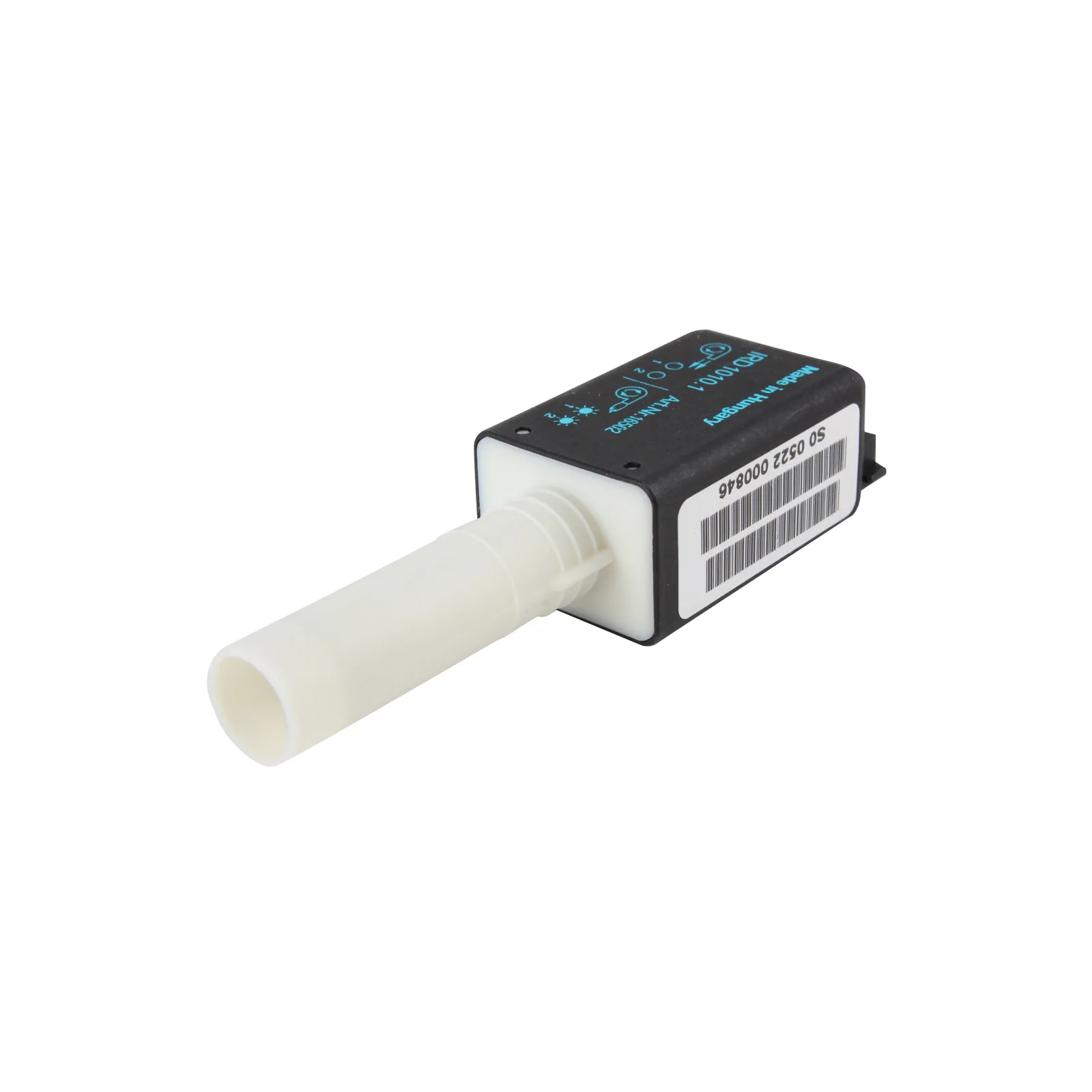

Honeywell Flicker detector IRD1010.1 16502
Brand Honeywell
Key specifications
| Detection principle | infrared |
|---|---|
| Detection principle | flicker detection |
| Safety function | fuel shut-off on flame loss |
| Fuel | gas and oil |
| Electrical connection | to burner control unit |
| Maintenance requirement | keep viewing port clean |
Lowest price in the 30 days before the price drop
56.94EUR
in stock · 1excl. VAT · import VAT and duties on delivery · shipping calculated at checkout
- Delivery to 97 countries
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
This Honeywell flicker detector, model IRD1010.1, is an infrared flame sensor for gas and oil burners. It operates on the principle of flicker detection and connects to the burner control unit. Its safety function is fuel shut-off on flame loss. The viewing port must be kept clean. The item's SKU is 16502.
Further details
| Application | flame presence monitoring in burners and boilers |
|---|---|
| Design features | specific form factor indicated by 'axial blue' |
| Environmental condition | not exposed to excessive heat or vibration |
| Material | high-quality materials resistant to high temperatures and aggressive environments |
| Mounting | through a sleeve in the burner housing |
| Mounting feature | direct line of sight to flame |
| Output signal | signal to control module on flame detection |
| Response characteristic | high sensitivity, quick and accurate flame detection |
Choosing and fitting
Parts of this type are selected by detection principle (flicker frequency response), cable length, connector type, and mounting arrangement. The detector must have a direct line of sight to the flame; it is mounted through a sleeve in the burner housing. Ensure the replacement matches the original in spectral response and response time. Verify electrical and mechanical characteristics against the burner control unit.
Signs of failure
Typical failure modes include a contaminated or fogged optical window, an aged sensor cell that produces a weakened signal, or a damaged cable sheath. The burner control may lock out during the safety time if no flame signal is received. Check the viewing port, sensor output, and cable integrity.
Interchangeable
All specifications
| Detection principle | infrared |
|---|---|
| Detection principle | flicker detection |
| Safety function | fuel shut-off on flame loss |
| Fuel | gas and oil |
| Electrical connection | to burner control unit |
| Maintenance requirement | keep viewing port clean |
Part numbers
| SKU | 16502 |
|---|---|
| Additional article | 852.211.011 |
| Model | IRD1010.1 |
