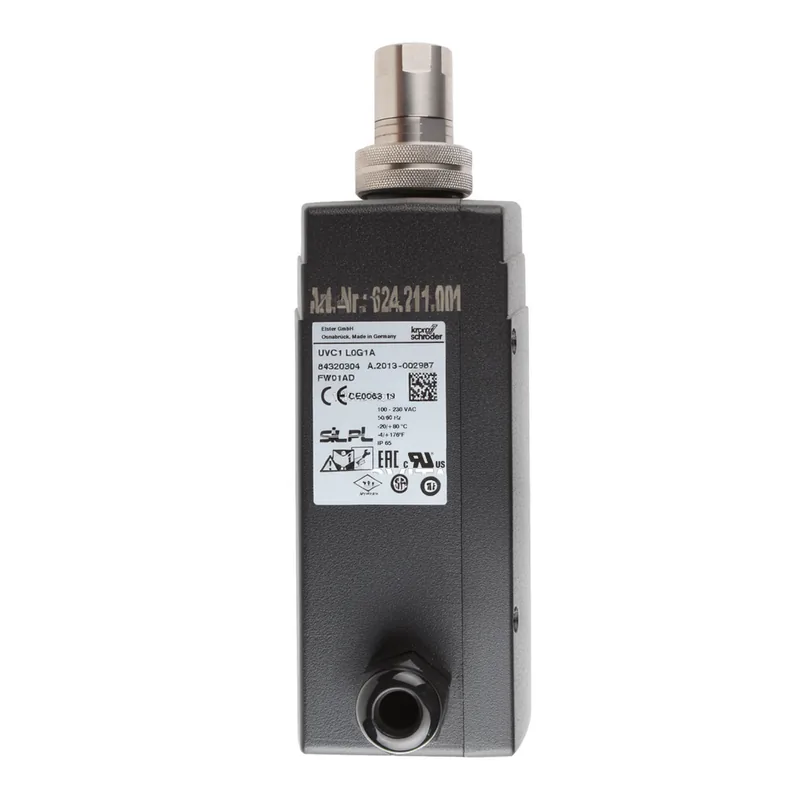

Kromschroder Flame sensor UVC1L0G1A 84320304
Brand Kromschroder
Key specifications
| Detection principle | UV |
|---|---|
| Distance between UV flame detector and flame | 300–400 mm |
| Clamping range of the connection terminals | 0.5–1.5 mm2 |
| Weight | 1 g |
| Ambient temperature | -20–80 °C |
| Storage temperature | -20–80 °C |
| Safety class | 1 |
| Cable length | 2000–100000 mm |
| Material | aluminum |
| Electrical connection | L and N terminals |
| Device type | UV flame sensor |
| Cable gland thread size | M20 |
| Lens type | quartz glass |
| Frequency | 50–60 Hz |
| Connection thread | RP 1/2 internal thread |
| Supply voltage | 100–230 V |
1962.60EUR
in stock · 1excl. VAT · import VAT and duties on delivery · shipping calculated at checkout
- Delivery to 97 countries
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
The Kromschroder UV flame sensor (SKU 84320304, model UVC1L0G1A) detects UV radiation from a flame at a distance of 300–400 mm. It is designed for use with Kromschroder BCU and PFU burner control units and connects via L and N terminals. The device operates at a supply voltage of 100–230 V AC with a frequency of 50–60 Hz. It features a quartz glass lens, an RP 1/2 internal thread, an M20 cable gland, and an aluminum housing. The cable length between the detector and the control unit can range from 2000 mm to 100000 mm. Ambient and storage temperature limits are -20 to 80 °C.
Further details
| Compatible Control Type | Kromschroder burner control units BCU and PFU |
|---|---|
| Enclosure | IP 65 |
| Housing | aluminum |
| Min. DC signal | 1 μA |
| Pollution Degree | internal environment: 2, external environment: 4 |
| Supply voltage | 100 to 230 V AC, 50/60 Hz (terminals L and N) |
| UV tube | P578, spectral range: 190 to 270 nm, max. sensitivity: 210 nm ± 10 nm |
Fits equipment
Kromschroder BCU and PFU Rp 1/2 internal thread M20 cable glandKromschroder BCUKromschroder PFU
All specifications
| Detection principle | UV |
|---|---|
| Distance between UV flame detector and flame | 300–400 mm |
| Clamping range of the connection terminals | 0.5–1.5 mm2 |
| Weight | 1 g |
| Ambient temperature | -20–80 °C |
| Storage temperature | -20–80 °C |
| Safety class | 1 |
| Cable length | 2000–100000 mm |
| Material | aluminum |
| Electrical connection | L and N terminals |
| Device type | UV flame sensor |
| Cable gland thread size | M20 |
| Lens type | quartz glass |
| Frequency | 50–60 Hz |
| Connection thread | RP 1/2 internal thread |
| Supply voltage | 100–230 V |
Part numbers
| SKU | 84320304 |
|---|---|
| Additional article | 624.211.001 |
| Model | UVC1L0G1A |
