720.00 EURexcl. VAT · import VAT and duties on delivery

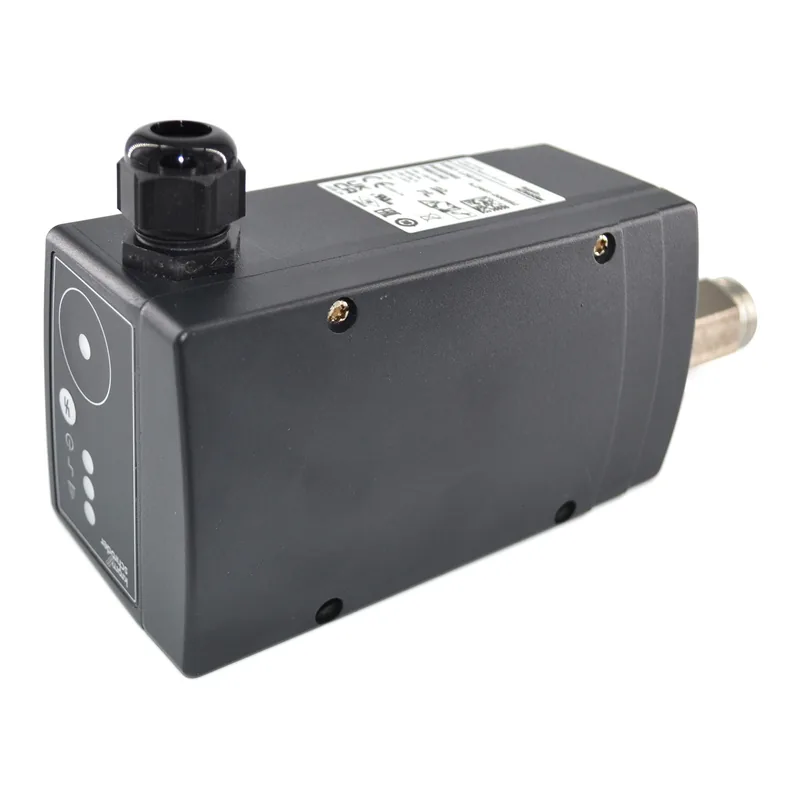

Kromschroder UV flame detector UVC1L3G1A 84320302
Brand Kromschroder
Key specifications
| Detection principle | UV |
|---|---|
| Distance between UV flame detector and flame | 300–400 mm |
| Clamping range of the connection terminals | 0.5–1.5 mm2 |
| Weight | 1000 g |
| Ambient temperature | -20–80 °C |
| Storage temperature | -20–80 °C |
| Safety class | 1 |
| Material | Aluminum |
| Sensing element | UV tube P578 |
| Compatible control type | Kromschroder BCU, PFU |
| Electrical connection | Terminals L and N |
| Service life | Approx. 10,000 operating hours |
| Device type | UV flame detector |
| Frequency | 50–60 Hz |
| Cable length | 2000–100000 mm |
| Cycle type | Intermittent and continuous |
| Pollution degree | Internal: 2, External: 4 |
| Designed lifetime | 10 years |
| Connection thread | RP 1/2 internal thread |
| Cooling air connection | M20 cable gland |
| Supply voltage | 100–230 V |
2001.60EUR
in stock · 1excl. VAT · import VAT and duties on delivery · shipping calculated at checkout
- Delivery to 97 countries
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
This UV flame detector from Kromschroder, model UVC1L3G1A, monitors flames emitting UV radiation. It is designed for use with Kromschroder BCU and PFU burner control units for both intermittent and continuous operation. The detector operates on a supply voltage of 100–230 V at 50–60 Hz and connects via RP 1/2 internal thread with an M20 cable gland. Its sensing element is a UV tube type P578, and it should be positioned 300–400 mm from the flame. The cable between the detector and the control unit can be 2000 to 100000 mm long. It has an aluminum housing, operates in ambient temperatures from -20 to 80 °C, and weighs 1000 g.
Further details
| Enclosure | IP 65 |
|---|---|
| Housing | aluminum |
| Lens type | Series 1 quartz glass heat guard lens |
| Min. DC signal | 1 μA |
| Supply voltage | 100 to 230 V AC, 50/60 Hz (terminals L and N) |
| UV tube | P578, spectral range: 190 to 270 nm, max. sensitivity: 210 nm ± 10 nm |
Fits equipment
Kromschroder BCU and PFU M20 cable glandKromschroder BCUKromschroder PFU
All specifications
| Detection principle | UV |
|---|---|
| Distance between UV flame detector and flame | 300–400 mm |
| Clamping range of the connection terminals | 0.5–1.5 mm2 |
| Weight | 1000 g |
| Ambient temperature | -20–80 °C |
| Storage temperature | -20–80 °C |
| Safety class | 1 |
| Material | Aluminum |
| Sensing element | UV tube P578 |
| Compatible control type | Kromschroder BCU, PFU |
| Electrical connection | Terminals L and N |
| Service life | Approx. 10,000 operating hours |
| Device type | UV flame detector |
| Frequency | 50–60 Hz |
| Cable length | 2000–100000 mm |
| Cycle type | Intermittent and continuous |
| Pollution degree | Internal: 2, External: 4 |
| Designed lifetime | 10 years |
| Connection thread | RP 1/2 internal thread |
| Cooling air connection | M20 cable gland |
| Supply voltage | 100–230 V |
Part numbers
| SKU | 84320302 |
|---|---|
| Additional article | 624.208.008 |
| Model | UVC1L3G1A |
