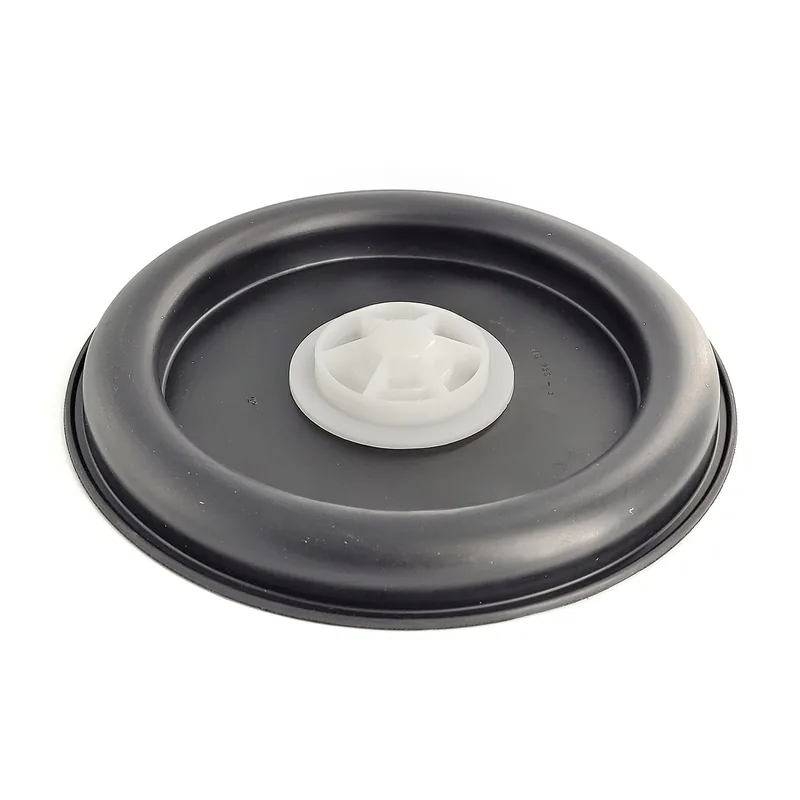

Kromschroder Safety diaphragm 74924644

Name: Kromschroder Safety diaphragm 74924644
Brand: Kromschroder
SKU: 74924644
Price: 321.62 EUR
Availability: InStock

SKU 74924644 Brand Kromschroder

Brand Kromschroder

Buy Kromschroder Safety diaphragm 74924644

Key specifications

Weight	10 g
Material	gas-resistant elastomer
Compatibility	GIK 65 /B
Working medium	natural and liquefied gas

all specifications (4) ↓

265.80EUR

in stock · 1

excl. VAT · import VAT and duties on delivery · shipping calculated at checkout

Delivery to 97 countries
Original manufacturer part
Dispatch within 24 h for stocked items

Description

The Kromschroder Safety diaphragm 74924644 is a spare part for the GIK 65 /B gas-air ratio regulator. It is a compensating diaphragm made of gas-resistant elastomer, weighing 10 g. This diaphragm compensates for fluctuations in inlet gas pressure to maintain stable outlet pressure, ensuring the correct gas-to-air ratio. It is compatible with natural and liquefied gas.

Further details

Function	compensation of inlet gas pressure fluctuations
Installation recommendations	use a torque wrench to tighten the cover screws crosswise with the force specified in the manufacturer's instructions
Key advantages	stability of gas-air ratio; protection against pressure fluctuations; original quality and durability; required component during repair
Maintenance requirement	inspect the GIK regulator every 1-2 years and replace all membranes
Purpose	compensation of inlet gas pressure (pe) fluctuations
Safety note	replacement work must be performed by qualified personnel authorized to work with gas equipment; before starting work, make sure the gas is shut off and the pressure in the line is released to atmospheric pressure
Signs of wear	gas/air ratio drift; unstable operation at low loads; excessive gas consumption

Choosing and fitting

When selecting a replacement diaphragm for a gas-air ratio regulator, ensure it matches the regulator model and size, as different models require specific parts. The diaphragm material must be compatible with the gas type. Installation should be performed by qualified personnel after shutting off the gas and releasing pressure. Follow the manufacturer's instructions for proper torque when reassembling.

Signs of failure

A worn or damaged compensating diaphragm can cause the gas-air ratio to drift, leading to unstable burner operation at low loads or excessive gas consumption. The burner may exhibit flame instability or require frequent adjustments. Regular inspection and replacement of diaphragms are recommended to prevent these issues.
