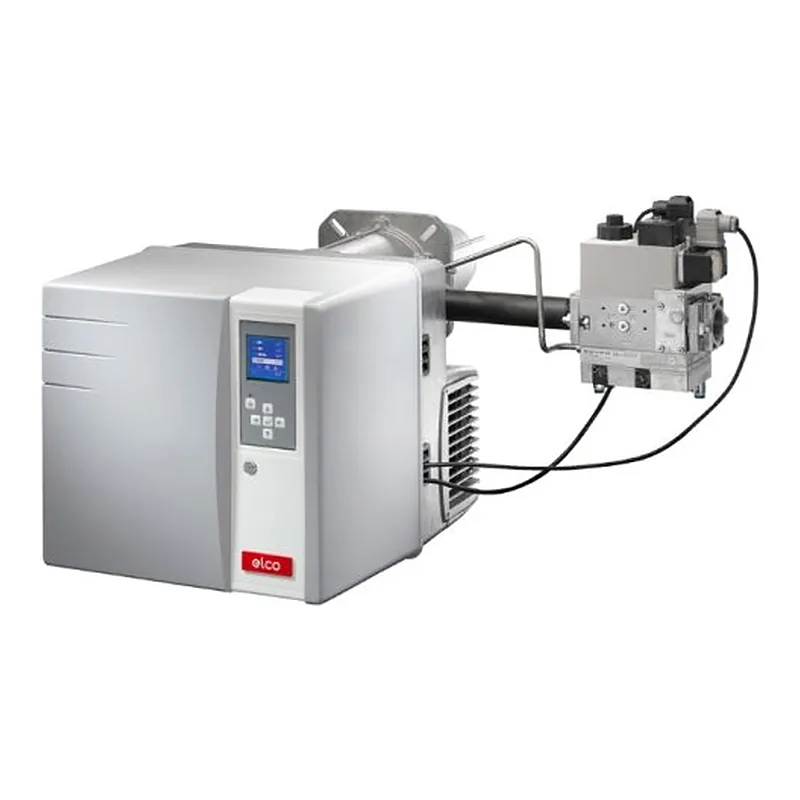

Elco VG 3.290 D E KL d217 — gas burner, photo 1

Elco VG 3.290 D E KL d217 — spare parts

Fuel
Gas
Output
95–290 kW
Parts
12
Factory code
3836389

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Elco VG 3.290 D E KL d217 · 5

Actuators for Elco VG 3.290 D E KL d217 · 1

Boiler insulation for Elco VG 3.290 D E KL d217 · 1

Burners for Elco VG 3.290 D E KL d217 · 1

Cables for Elco VG 3.290 D E KL d217 · 1

Control devices for Elco VG 3.290 D E KL d217 · 1

Pressure switches for Elco VG 3.290 D E KL d217 · 1

Wiring, cables & electrical components for Elco VG 3.290 D E KL d217 · 1

What is inside Elco VG 3.290 D E KL d217

Components named in the manufacturer's documentation.

  • CONTROL UNIT TCG 211.00
  • ACTUATOR STE 4,5 B0.37/6-R + CABLE L600
  • AIR PRESS.SWITCH 604.91 0,5-5MB
  • AIR PRESS.SWITCH 604.91 0,5-5MB+RAST
  • DISPLAY/CONTROL UNIT TCG-TCH REL.2.2
  • EBI
  • ELECTRODE BLOCK 12X46 D4 D1,2X10
  • GAS NOZZLE D47/33X9 6 DRILLING D2
  • GAS PRESS.SWITCH GW 150 A5 5-150MB
  • GAS VALVE MB-ZRDLE407B01 S50 RP3/4 GW150
  • GAS VALVE MB-ZRDLE412 B01 S20 RP1 1/4
  • GAS VALVE MBZRDLE420 B01 S20 RP2”
  • IGNITION TRANSFO. EBI 2X7,5 230V
  • LUFTDRUCKWACHTER 604.91 0,5-5MB
  • LUFTDRUCKWAECHTER 604.91 0,5-5MB+RAST
  • MANOSTAT AIR 604.91 0,5-5MB
  • MANOSTAT AIR 604.91 0,5-5MB+RAST
  • MB-ZRDLE407
  • MB-ZRDLE412
  • MB-ZRDLE420
  • MOTOR 0,25KW 230V D12,7 BELÜFTET
  • MOTOR 0,25KW 230V D12,7 VENTILATED
  • MOTOR 0,3KW 230V D12,7
  • SERVOMOTEUR STE4,5 B0.37/6-R +CABLE L600

Specifications

FuelGas
Output95–290 kW
Gas connectionRp 1 1/4"
Firing stagesTwo-stage
Fan motor power250 W
Supply voltage220 V
Power consumption420 W
Net weight42 kg
Protection class (IP)IP21
Flame tube length320 mm
Flame tube diameter130 mm
Flame tube typeextended
Back pressure (combustion chamber)0–3.6 mbar
Gas consumption9.2–28 m³/h
Gas train pressure10–15 mbar
Noise level67 dB
Operating temperature-10–60 °C
Overall dimensions89.6 x 40.6 x 37.9 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesElco VG 3.290 · 32

Parts often differ between versions of one series: pick the version named on your rating plate.

All 32 versions

Questions about Elco VG 3.290 D E KL d217 parts

Which burner components fit Elco VG 3.290 D E KL d217?

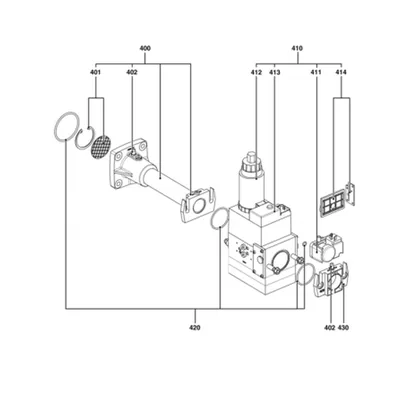

These fit Elco VG 3.290 D E KL d217: Ecoflam Housing Fixing Screw 65300519; Ecoflam Intake Air Guide 65300525; Elco Gas Ramp 3833383; Elco Combustion Head 3836496; Elco Combustion Head 3836497. ↑

Which actuators fit Elco VG 3.290 D E KL d217?

These fit Elco VG 3.290 D E KL d217: Elco Actuator 65300527. ↑

Which boiler insulation fit Elco VG 3.290 D E KL d217?

These fit Elco VG 3.290 D E KL d217: Ecoflam Soundproofing 65300518. ↑

Which burners fit Elco VG 3.290 D E KL d217?

These fit Elco VG 3.290 D E KL d217: Ecoflam Burner Housing 65300622. ↑

Which cables fit Elco VG 3.290 D E KL d217?

These fit Elco VG 3.290 D E KL d217: Ecoflam Power Cable 65300570. ↑

Which control devices fit Elco VG 3.290 D E KL d217?

These fit Elco VG 3.290 D E KL d217: Elco Combustion Manager TCG-211.00 65300880. ↑
