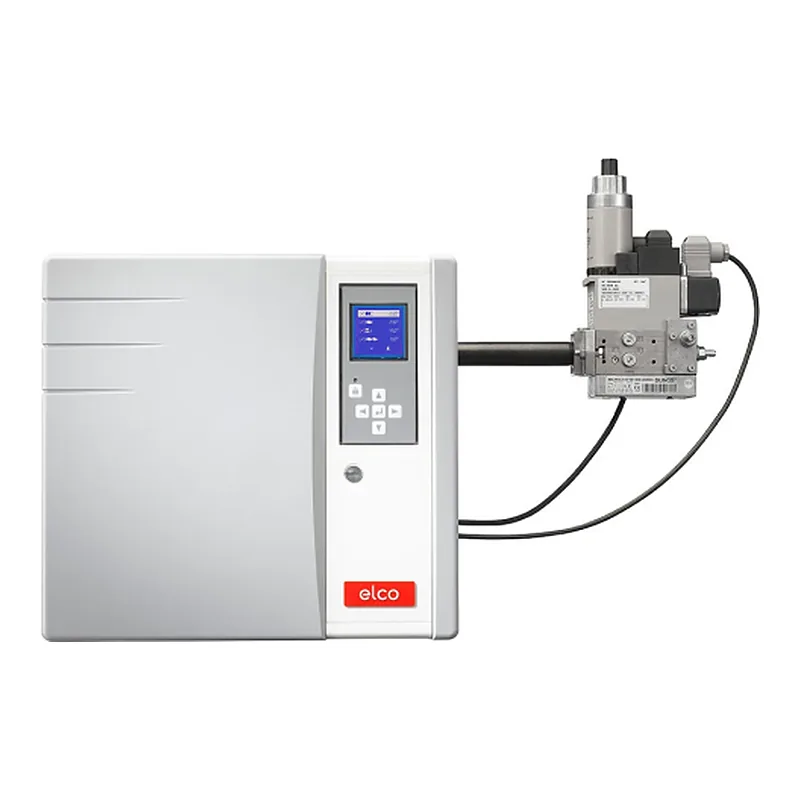

Elco VG 3.290 DP E KN d340 — gas burner, photo 1

Elco VG 3.290 DP E KN d340 — spare parts

Fuel
Gas
Output
95–290 kW
Parts
1
Factory code
3836420

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Elco VG 3.290 DP E KN d340 · 1

What is inside Elco VG 3.290 DP E KN d340

Components named in the manufacturer's documentation.

  • 0,25KW 230V D12,7 VENTILATED
  • 0,3KW 230V D12,7
  • 604.91 0,5-5MB
  • D47/33X9 6 DRILLING D2
  • EBI 2X7,5 230V
  • GW 150 A5 5-150MB
  • MB-VE407
  • MB-VE412
  • MB-VEF407 B01 S30 RP3/4 PL=1,2
  • MB-VEF412 B01 S10 RP1 1/4
  • MB-VEF420
  • MBVEF420 B01 S10 RP2’’+FP
  • STE 4,5 B0
  • STE 4,5 B0.37/6-R
  • TCG 511.00
  • TCG 5xx
  • TCG-TCH REL.2.2

Specifications

FuelGas
Output95–290 kW
Gas connectionRp 1 1/4"
Fan motor power250 W
Supply voltage220 V
Power consumption465 W
Net weight30 kg
Protection class (IP)IP21
Flame tube length180 mm
Flame tube diameter130 mm
Flame tube typeshort
Back pressure (combustion chamber)0–3.6 mbar
Gas consumption9.2–28 m³/h
Gas train pressure9–13 mbar
Noise level69 dB
Operating temperature-10–60 °C
Overall dimensions75.6 x 40.6 x 37.9 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesElco VG 3.290 · 32

Parts often differ between versions of one series: pick the version named on your rating plate.

All 32 versions

Questions about Elco VG 3.290 DP E KN d340 parts

Which burner components fit Elco VG 3.290 DP E KN d340?

These fit Elco VG 3.290 DP E KN d340: Elco Gas Ramp 3833691. ↑
