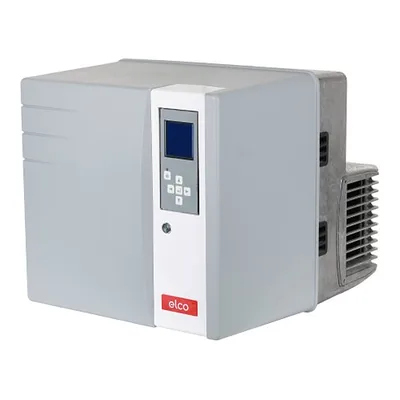

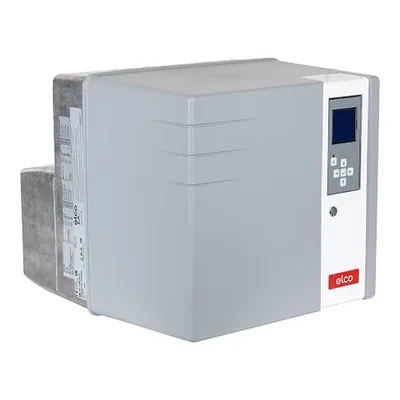

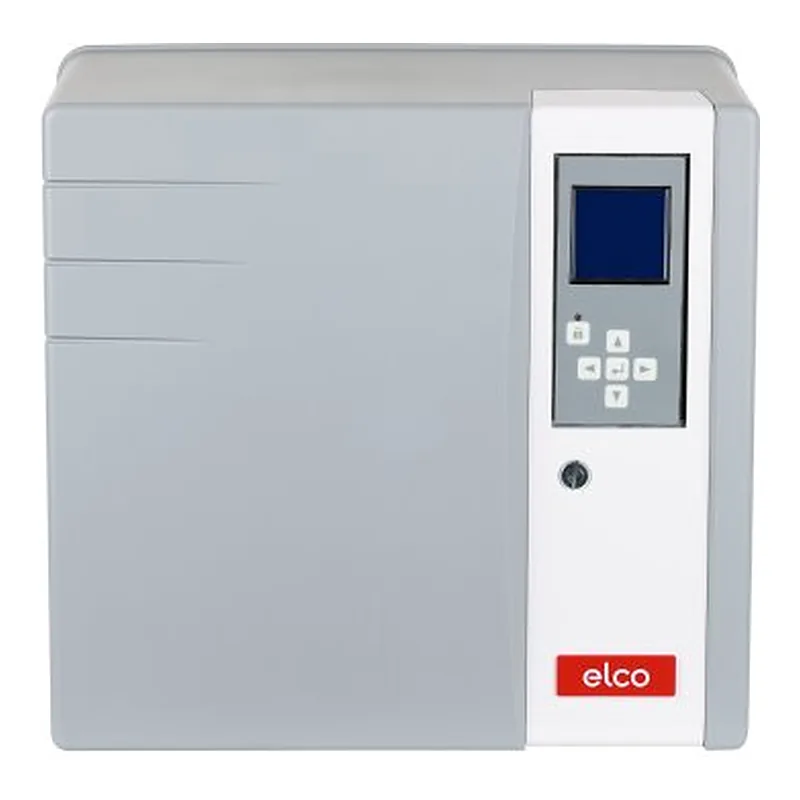

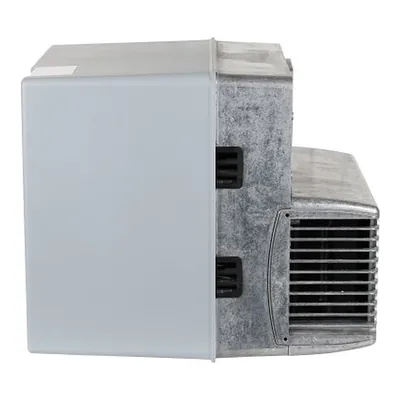

Elco VG 3.290 DP E — gas burner, photo 1

Elco VG 3.290 DP E — spare parts

Fuel
Gas
Output
95–290 kW
Parts
11
Factory code
3836532

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Pressure switches for Elco VG 3.290 DP E · 3

Burner components for Elco VG 3.290 DP E · 2

Cables for Elco VG 3.290 DP E · 2

Actuators for Elco VG 3.290 DP E · 1

Boiler insulation for Elco VG 3.290 DP E · 1

Burners for Elco VG 3.290 DP E · 1

Wiring, cables & electrical components for Elco VG 3.290 DP E · 1

What is inside Elco VG 3.290 DP E

Components named in the manufacturer's documentation.

  • 0,25KW 230V D12,7 VENTILATED
  • 0,3KW 230V D12,7
  • 604.91 0,5-5MB
  • D47/33X9 6 DRILLING D2
  • EBI 2X7,5 230V
  • GW 150 A5 5-150MB
  • MB-VE407
  • MB-VE412
  • MB-VEF407 B01 S30 RP3/4 PL=1,2
  • MB-VEF412 B01 S10 RP1 1/4
  • MB-VEF420
  • MBVEF420 B01 S10 RP2’’+FP
  • STE 4,5 B0
  • STE 4,5 B0.37/6-R
  • TCG 511.00
  • TCG 5xx
  • TCG-TCH REL.2.2

Specifications

FuelGas
Output95–290 kW
Fan motor power250 W
Supply voltage220 V
Power consumption465 W
Net weight16.8 kg
Protection class (IP)IP21
Flame tube diameter130 mm
Back pressure (combustion chamber)0–3.6 mbar
Gas consumption9.2–28 m³/h
Noise level69 dB
Operating temperature-10–60 °C
Overall dimensions57.6 x 40.6 x 37.9 cm
Delivery scopewithout combustion head, without gas train

Other versions of this seriesElco VG 3.290 · 32

Parts often differ between versions of one series: pick the version named on your rating plate.

All 32 versions

Questions about Elco VG 3.290 DP E parts

Which pressure switches fit Elco VG 3.290 DP E?

These fit Elco VG 3.290 DP E: Elco Pressure switch 13020502; Elco Pressure Switch Holder 13020723; Huba Control Control Pressure Switch 604.99881. ↑

Which burner components fit Elco VG 3.290 DP E?

These fit Elco VG 3.290 DP E: Ecoflam Housing Fixing Screw 65300519; Ecoflam Intake Air Guide 65300525. ↑

Which cables fit Elco VG 3.290 DP E?

These fit Elco VG 3.290 DP E: Ecoflam Power Cable 65300570; Elco Power Cable 13010080. ↑

Which actuators fit Elco VG 3.290 DP E?

These fit Elco VG 3.290 DP E: Elco Actuator 65300527. ↑

Which boiler insulation fit Elco VG 3.290 DP E?

These fit Elco VG 3.290 DP E: Ecoflam Soundproofing 65300518. ↑

Which burners fit Elco VG 3.290 DP E?

These fit Elco VG 3.290 DP E: Ecoflam Burner Housing 65300622. ↑
