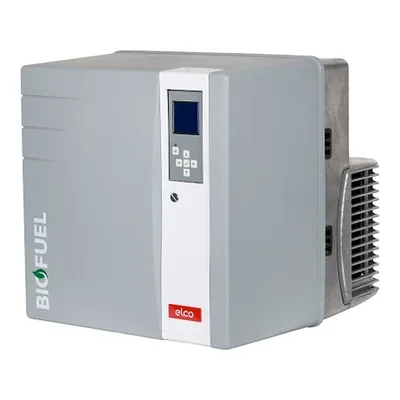

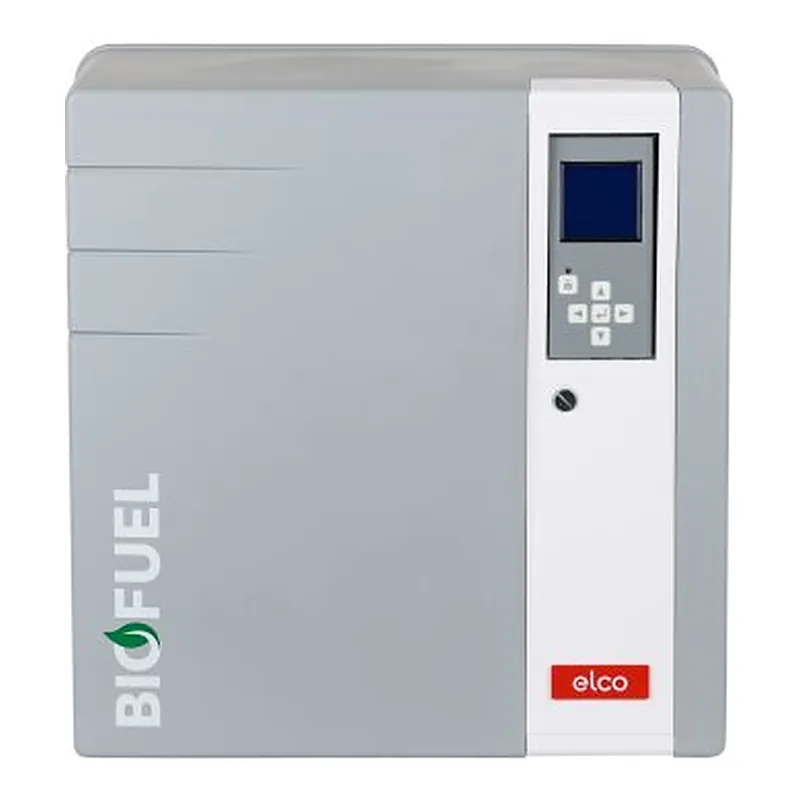

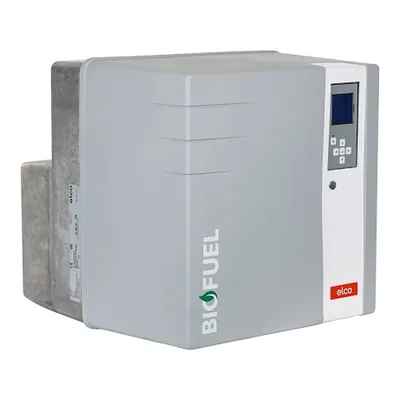

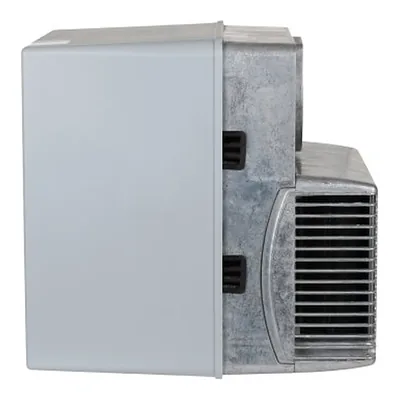

Elco VL 4.610 D — spare parts
- Fuel
- Oil
- Output
- 195–610 kW
- Parts
- 11
- Factory code
- 3833181
- Series
- VL 4.610 · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VL 4.610 D · 3
—on request
—on request
Motors for Elco VL 4.610 D · 3
—on request
—on request
—on request
Actuators for Elco VL 4.610 D · 1
—on request
Boiler housing parts for Elco VL 4.610 D · 1
—on request
Cables for Elco VL 4.610 D · 1
—on request
Control panels and displays for Elco VL 4.610 D · 1
—on request
Oil pumps for Elco VL 4.610 D · 1
—on request
What is inside Elco VL 4.610 D
Components named in the manufacturer's documentation.
- A2L65C
- QRB1
- STE 4.5 B0
- TCH TCH 2xx
Specifications
FuelOil
Output195–610 kW
Firing stagesTwo-stage
Fan motor power750 W
Supply voltage220 V
Power consumption785 W
Net weight43.9 kg
Protection class (IP)IP21
Back pressure (combustion chamber)0–6 mbar
Noise level69 dB
Operating temperature-10–60 °C
Overall dimensions64 x 46.5 x 47.4 cm
Delivery scopewithout combustion head
Other versions of this seriesElco VL 4.610 · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- VL 4.610 D
11 parts · 3833181 - VL 4.610 D KL
10 parts · 3833398 - VL 4.610 D KN
10 parts · 3833397 - VL 4.610 DP
11 parts · 3833973 - VL 4.610 DP KL
10 parts · 3833971 - VL 4.610 DP KN
10 parts · 3833970
Questions about Elco VL 4.610 D parts
Which burner components fit Elco VL 4.610 D?
These fit Elco VL 4.610 D: Ecoflam Housing Fixing Screw 65300519; Ecoflam Intake Air Guide 65300809; Ecoflam Air Intake Box 65326874. ↑
Which motors fit Elco VL 4.610 D?
These fit Elco VL 4.610 D: Elco Electric Motor Clutch 65074172; Elco Motor 65300814; Elco Motor Plate 65301222. ↑
Which actuators fit Elco VL 4.610 D?
These fit Elco VL 4.610 D: Elco Actuator 65300527. ↑
Which boiler housing parts fit Elco VL 4.610 D?
These fit Elco VL 4.610 D: Elco Boiler housing part 65326235. ↑
Which cables fit Elco VL 4.610 D?
These fit Elco VL 4.610 D: Elco Power Cable 13011090. ↑
Which control panels and displays fit Elco VL 4.610 D?
These fit Elco VL 4.610 D: Elco Burner Manager Holder 65300524. ↑
