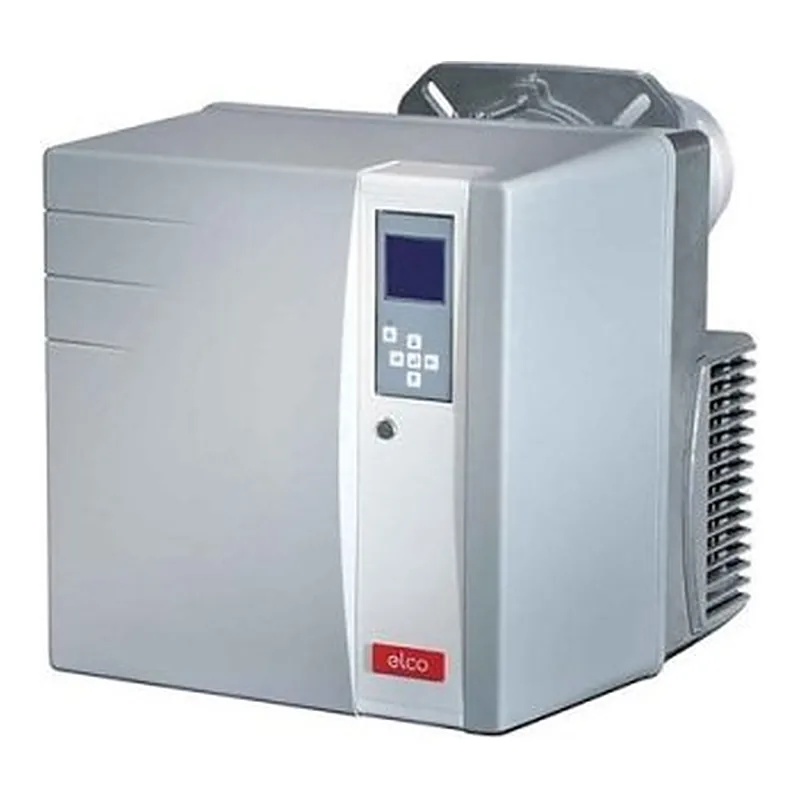

Elco VL 4.610 DP KN — spare parts
- Fuel
- Oil
- Output
- 195–610 kW
- Parts
- 10
- Factory code
- 3833970
- Series
- VL 4.610 · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VL 4.610 DP KN · 5
—on request
—on request
—on request
—on request
Cables for Elco VL 4.610 DP KN · 1
—on request
Control panels and displays for Elco VL 4.610 DP KN · 1
—on request
Flues & air ducts for Elco VL 4.610 DP KN · 1
—on request
Gas nozzles & injectors for Elco VL 4.610 DP KN · 1
—on request
Oil pumps for Elco VL 4.610 DP KN · 1
—on request
What is inside Elco VL 4.610 DP KN
Components named in the manufacturer's documentation.
- AT3 55C
- QRB1
- STE 4.5 B0
- TCH 3xx
Specifications
FuelOil
Output195–610 kW
Fan motor power750 W
Supply voltage220 V
Power consumption830 W
Net weight38.5 kg
Protection class (IP)IP21
Flame tube length220 mm
Flame tube diameter150 mm
Flame tube typeshort
Back pressure (combustion chamber)0–6 mbar
Noise level71 dB
Operating temperature-10–50 °C
Overall dimensions86 x 46.5 x 47.4 cm
Delivery scopewith combustion head
Other versions of this seriesElco VL 4.610 · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- VL 4.610 D
11 parts · 3833181 - VL 4.610 D KL
10 parts · 3833398 - VL 4.610 D KN
10 parts · 3833397 - VL 4.610 DP
11 parts · 3833973 - VL 4.610 DP KL
10 parts · 3833971 - VL 4.610 DP KN
10 parts · 3833970
Questions about Elco VL 4.610 DP KN parts
Which burner components fit Elco VL 4.610 DP KN?
These fit Elco VL 4.610 DP KN: Ecoflam Housing Fixing Screw 65300519; Ecoflam Adjustment Rod 65300804; Ecoflam Intake Air Guide 65300809; Elco Fixing Screws 13007804; Elco Equalizing Disc 13017115. ↑
Which cables fit Elco VL 4.610 DP KN?
These fit Elco VL 4.610 DP KN: Elco Power Cable 13011090. ↑
Which control panels and displays fit Elco VL 4.610 DP KN?
These fit Elco VL 4.610 DP KN: Elco Burner Manager Holder 65300524. ↑
Which flues & air ducts fit Elco VL 4.610 DP KN?
These fit Elco VL 4.610 DP KN: Ecoflam Fire Tube 65300806. ↑
Which gas nozzles & injectors fit Elco VL 4.610 DP KN?
These fit Elco VL 4.610 DP KN: Elco Gas nozzle 13018355. ↑
Which oil pumps fit Elco VL 4.610 DP KN?
These fit Elco VL 4.610 DP KN: Elco Oil pump 13011938. ↑
