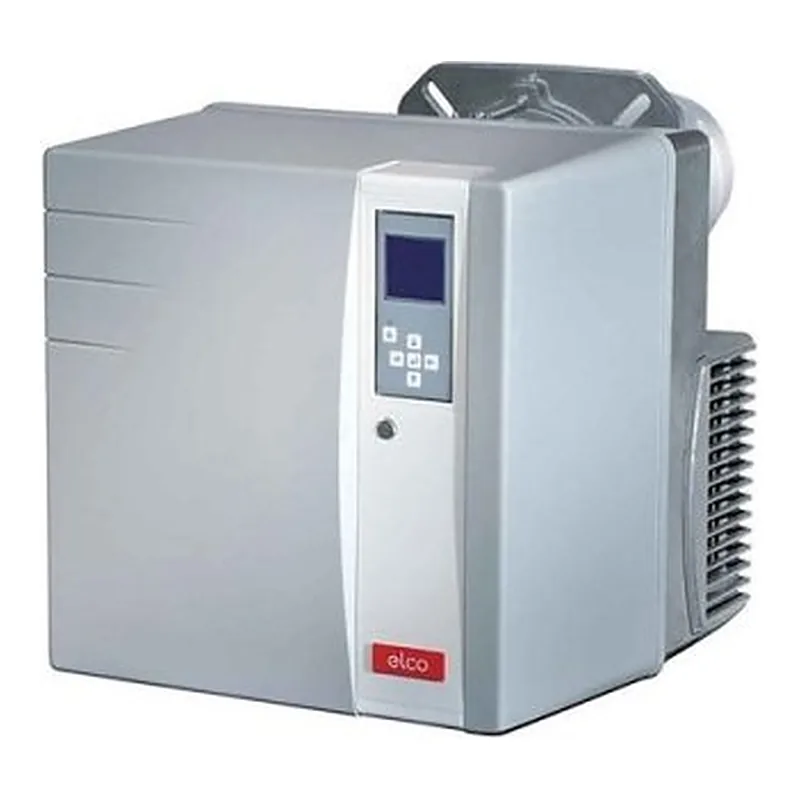

Elco VL 4.610 DP — spare parts
- Fuel
- Oil
- Output
- 195–610 kW
- Parts
- 11
- Factory code
- 3833973
- Series
- VL 4.610 · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VL 4.610 DP · 3
—on request
—on request
Cables for Elco VL 4.610 DP · 3
—on request
—on request
—on request
Boiler housing parts for Elco VL 4.610 DP · 1
—on request
Control panels and displays for Elco VL 4.610 DP · 1
—on request
Gas valves & coils for Elco VL 4.610 DP · 1
—on request
Motors for Elco VL 4.610 DP · 1
—on request
Oil pumps for Elco VL 4.610 DP · 1
—on request
What is inside Elco VL 4.610 DP
Components named in the manufacturer's documentation.
- AT3 55C
- QRB1
- STE 4.5 B0
- TCH 3xx
Specifications
FuelOil
Output195–610 kW
Fan motor power750 W
Supply voltage220 V
Power consumption830 W
Net weight38.5 kg
Protection class (IP)IP21
Back pressure (combustion chamber)0–6 mbar
Noise level71 dB
Operating temperature-10–50 °C
Overall dimensions64 x 46.5 x 47.4 cm
Delivery scopewithout combustion head
Other versions of this seriesElco VL 4.610 · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- VL 4.610 D
11 parts · 3833181 - VL 4.610 D KL
10 parts · 3833398 - VL 4.610 D KN
10 parts · 3833397 - VL 4.610 DP
11 parts · 3833973 - VL 4.610 DP KL
10 parts · 3833971 - VL 4.610 DP KN
10 parts · 3833970
Questions about Elco VL 4.610 DP parts
Which burner components fit Elco VL 4.610 DP?
These fit Elco VL 4.610 DP: Ecoflam Housing Fixing Screw 65300519; Ecoflam Intake Air Guide 65300809; Ecoflam Air Intake Box 65326874. ↑
Which cables fit Elco VL 4.610 DP?
These fit Elco VL 4.610 DP: Elco Power Cable 13011090; Elco CABLE SOL.VALVE+PLUG 3P/RAST3P L475V3 65301114; Elco CABLE SOL.VALVE+PLUG DIN/RAST3P L350V2 65301115. ↑
Which boiler housing parts fit Elco VL 4.610 DP?
These fit Elco VL 4.610 DP: Elco Boiler housing part 65326235. ↑
Which control panels and displays fit Elco VL 4.610 DP?
These fit Elco VL 4.610 DP: Elco Burner Manager Holder 65300524. ↑
Which gas valves & coils fit Elco VL 4.610 DP?
These fit Elco VL 4.610 DP: Elco Solenoid Valve 13018871. ↑
Which motors fit Elco VL 4.610 DP?
These fit Elco VL 4.610 DP: Elco Motor Plate 65301222. ↑
