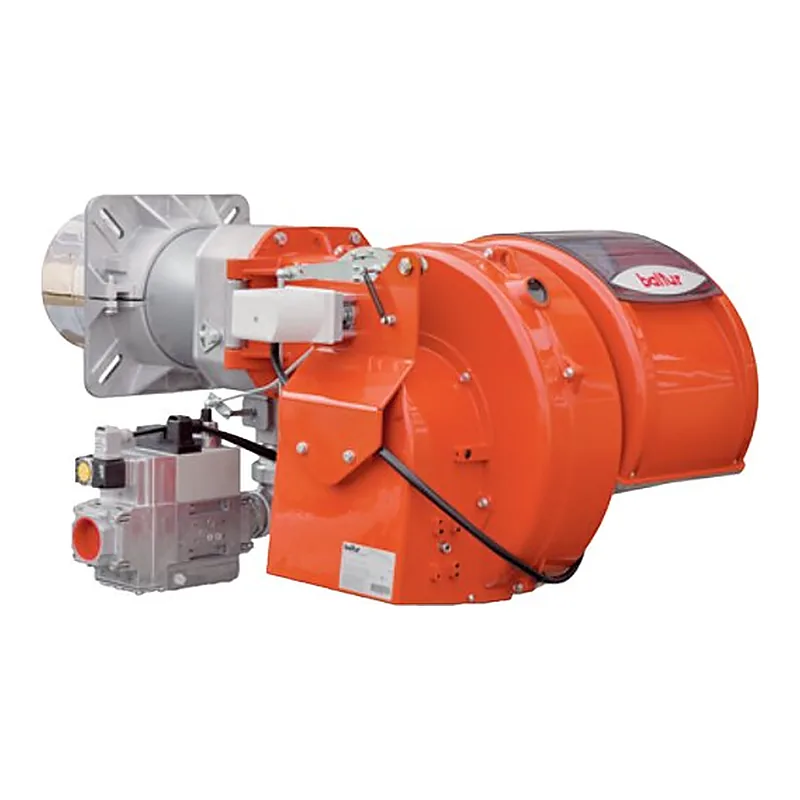

Baltur TBG 120 MC MM415 A20C-R6/4 — spare parts
- Fuel
- Gas
- Output
- 240–1200 kW
- Parts
- 1
- Factory code
- 18590010-19990548
- Series
- TBG 120 · 8
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBG 120 MC MM415 A20C-R6/4 · 1
What is inside Baltur TBG 120 MC MM415 A20C-R6/4
Components named in the manufacturer's documentation.
- SQN72
- LME 22.233
Specifications
FuelGas
Output240–1200 kW
Gas connectionRp 1 1/2"
Fan motor power1500 W
Supply voltage380 V
Power consumption2000 W
Net weight87 kg
Protection class (IP)IP54
Flame tube length450 mm
Flame tube diameter224 mm
Flame tube typestandard
Back pressure (combustion chamber)0–12 mbar
Gas consumption24.1–120.7 m³/h
Gas train pressure1.9–50.5 mbar
Noise level75.5 dB
Overall dimensions128 x 69 x 55 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesBaltur TBG 120 · 8
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBG 120 MC
12 parts · 18590010 - TBG 120 MC MM415 A20C-R6/4
1 part · 18590010-19990548 - TBG 120 ME
12 parts · 17570020 - TBG 120 P
12 parts · 18570010 - TBG 120 P L600
12 parts · FS21901230 - TBG 120 P MM415A20C-R6/4
1 part · 18570010-19990548 - TBG 120 P MM420 B20C-R2
2 parts · 18570010-19990715 - TBG 120 PN
12 parts · 17560010
Questions about Baltur TBG 120 MC MM415 A20C-R6/4 parts
Which burner components fit Baltur TBG 120 MC MM415 A20C-R6/4?
These fit Baltur TBG 120 MC MM415 A20C-R6/4: Baltur Diffuser 0011040083. ↑
