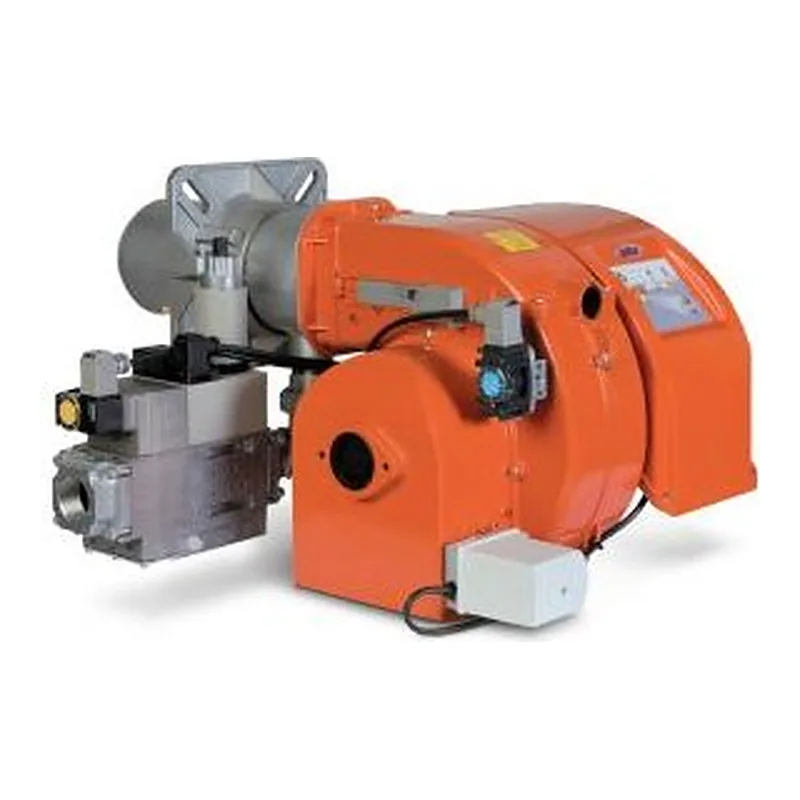

Baltur TBG 120 P — spare parts
- Fuel
- Gas
- Output
- 240–1200 kW
- Parts
- 12
- Factory code
- 18570010
- Series
- TBG 120 · 8
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBG 120 P · 3
—on request
—on request
Sensors and switches for Baltur TBG 120 P · 2
—on request
—on request
Cables for Baltur TBG 120 P · 1
—on request
Control devices for Baltur TBG 120 P · 1
—on request
Electronic control boards (PCB) for Baltur TBG 120 P · 1
—on request
Flues & air ducts for Baltur TBG 120 P · 1
—on request
Impellers for Baltur TBG 120 P · 1
—on request
Plugs and connectors for Baltur TBG 120 P · 1
—on request
Pressure switches for Baltur TBG 120 P · 1
102.60 EURexcl. VAT · import VAT and duties on delivery
Specifications
FuelGas
Output240–1200 kW
Firing stagesTwo-stage
Fan motor power1500 W
Supply voltage220 V
Power consumption1600 W
Net weight66 kg
Protection class (IP)IP54
Flame tube length450 mm
Flame tube diameter224 mm
Flame tube typestandard
Back pressure (combustion chamber)0–12 mbar
Gas consumption24.1–120.7 m³/h
Noise level75.5 dB
Overall dimensions128 x 69 x 55 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesBaltur TBG 120 · 8
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBG 120 MC
12 parts · 18590010 - TBG 120 MC MM415 A20C-R6/4
1 part · 18590010-19990548 - TBG 120 ME
12 parts · 17570020 - TBG 120 P
12 parts · 18570010 - TBG 120 P L600
12 parts · FS21901230 - TBG 120 P MM415A20C-R6/4
1 part · 18570010-19990548 - TBG 120 P MM420 B20C-R2
2 parts · 18570010-19990715 - TBG 120 PN
12 parts · 17560010
Questions about Baltur TBG 120 P parts
Which burner components fit Baltur TBG 120 P?
These fit Baltur TBG 120 P: Baltur Pin 0024010010; Baltur Articulated Connection 0024010020; Baltur Gas Manifold 19990512. ↑
Which sensors and switches fit Baltur TBG 120 P?
These fit Baltur TBG 120 P: Baltur Sensors and switches 0005120134; Baltur Sensors and switches 0005120135. ↑
Which cables fit Baltur TBG 120 P?
These fit Baltur TBG 120 P: Baltur Cable Entry 0005140469. ↑
Which control devices fit Baltur TBG 120 P?
These fit Baltur TBG 120 P: Baltur Burner Control Unit 0005030201. ↑
Which electronic control boards (PCB) fit Baltur TBG 120 P?
These fit Baltur TBG 120 P: Baltur Switching Board 0006120010. ↑
Which flues & air ducts fit Baltur TBG 120 P?
These fit Baltur TBG 120 P: Baltur Fire Tube 0024030029. ↑
