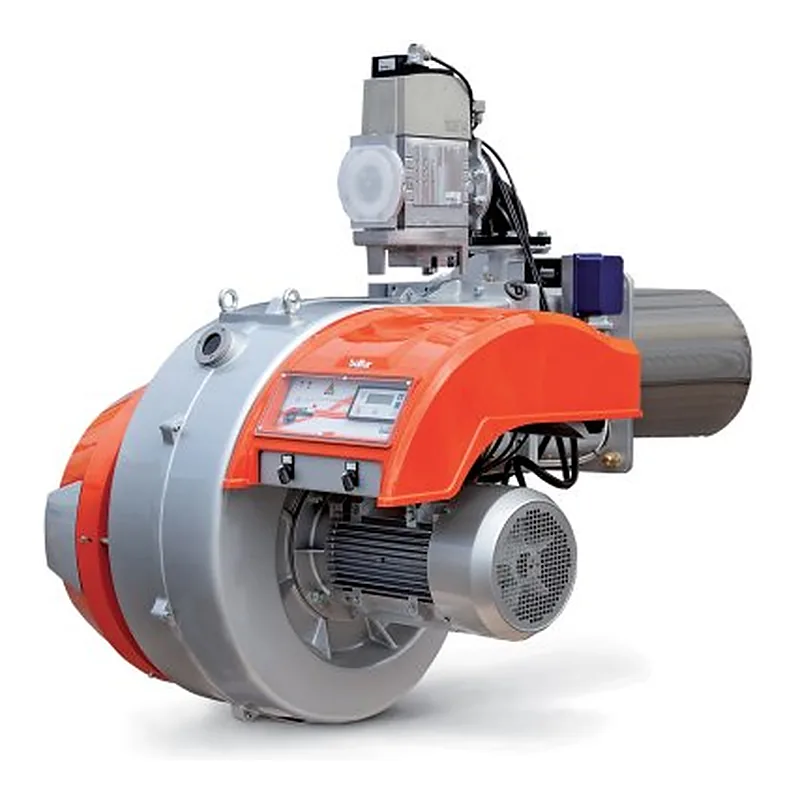

Baltur TBG 120 ME — spare parts
- Fuel
- Gas
- Output
- 240–1200 kW
- Parts
- 12
- Factory code
- 17570020
- Series
- TBG 120 · 8
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBG 120 ME · 3
—on request
—on request
Boiler filters, gaskets & seals for Baltur TBG 120 ME · 2
—on request
—on request
Burner pipes, flanges & connections for Baltur TBG 120 ME · 2
—on request
—on request
Cables for Baltur TBG 120 ME · 1
—on request
Flues & air ducts for Baltur TBG 120 ME · 1
—on request
Gas valves for Baltur TBG 120 ME · 1
—on request
Impellers for Baltur TBG 120 ME · 1
—on request
Motors for Baltur TBG 120 ME · 1
—on request
What is inside Baltur TBG 120 ME
Components named in the manufacturer's documentation.
- ACS150-03E-04A1-4
- LCM 100
- VSM 100
- Lamtec BT 320
- Lamtec STE 4.5
Specifications
FuelGas
Output240–1200 kW
Supply voltage380 V
Power consumption2000 W
Net weight87 kg
Protection class (IP)IP40
Flame tube length450 mm
Flame tube diameter224 mm
Back pressure (combustion chamber)0–12 mbar
Gas consumption24.1–120.7 m³/h
Noise level75.5 dB
Overall dimensions131.5 x 61 x 54 cm
Delivery scopewith combustion head
Other versions of this seriesBaltur TBG 120 · 8
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBG 120 MC
12 parts · 18590010 - TBG 120 MC MM415 A20C-R6/4
1 part · 18590010-19990548 - TBG 120 ME
12 parts · 17570020 - TBG 120 P
12 parts · 18570010 - TBG 120 P L600
12 parts · FS21901230 - TBG 120 P MM415A20C-R6/4
1 part · 18570010-19990548 - TBG 120 P MM420 B20C-R2
2 parts · 18570010-19990715 - TBG 120 PN
12 parts · 17560010
Questions about Baltur TBG 120 ME parts
Which burner components fit Baltur TBG 120 ME?
These fit Baltur TBG 120 ME: Baltur Head Regulator 0024010008; Baltur Air damper 0024010012; Baltur Articulated Connection 0024010020. ↑
Which boiler filters, gaskets & seals fit Baltur TBG 120 ME?
These fit Baltur TBG 120 ME: Baltur Gasket 0005180077; Baltur Gasket 0030010574. ↑
Which burner pipes, flanges & connections fit Baltur TBG 120 ME?
These fit Baltur TBG 120 ME: Baltur Connecting Elbow 0024030004; Baltur Fuel Tube 0024100040. ↑
Which cables fit Baltur TBG 120 ME?
These fit Baltur TBG 120 ME: Baltur Cable Entry 0005140469. ↑
Which flues & air ducts fit Baltur TBG 120 ME?
These fit Baltur TBG 120 ME: Baltur Fire Tube 0024030029. ↑
Which gas valves fit Baltur TBG 120 ME?
These fit Baltur TBG 120 ME: Baltur Gas Throttle Valve Gasket 0024030017. ↑
