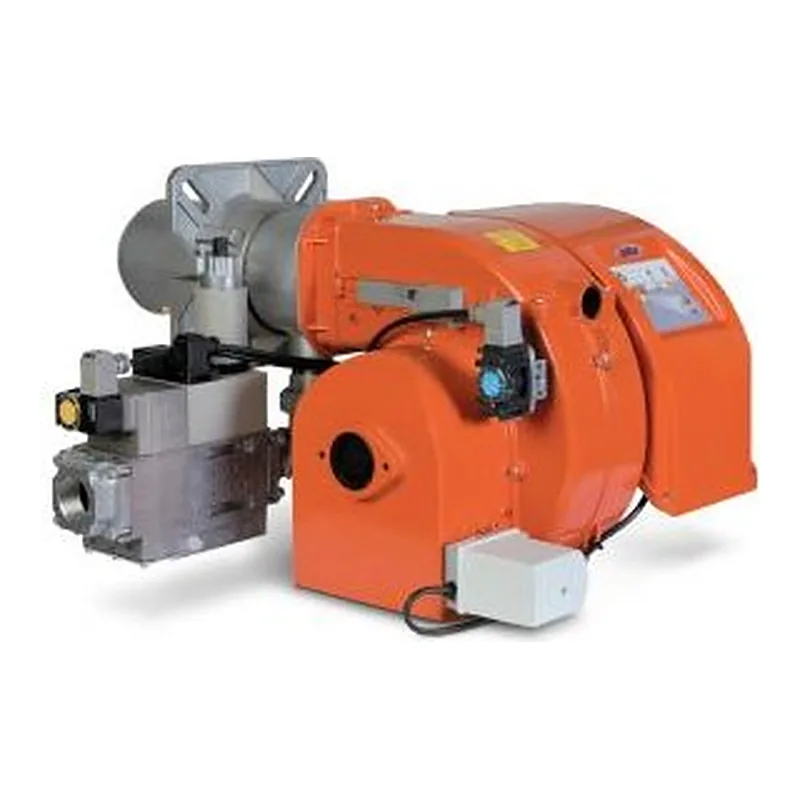

Baltur TBG 120 PN — spare parts
- Fuel
- Gas
- Output
- 240–1200 kW
- Parts
- 12
- Factory code
- 17560010
- Series
- TBG 120 · 8
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBG 120 PN · 3
—on request
—on request
Sensors and switches for Baltur TBG 120 PN · 2
—on request
—on request
Boiler filters, gaskets & seals for Baltur TBG 120 PN · 1
—on request
Cables for Baltur TBG 120 PN · 1
—on request
Flues & air ducts for Baltur TBG 120 PN · 1
—on request
Impellers for Baltur TBG 120 PN · 1
—on request
Plugs and connectors for Baltur TBG 120 PN · 1
—on request
Pressure switches for Baltur TBG 120 PN · 1
102.60 EURexcl. VAT · import VAT and duties on delivery
Wiring, cables & electrical components for Baltur TBG 120 PN · 1
—on request
What is inside Baltur TBG 120 PN
Components named in the manufacturer's documentation.
- 0005010001 MOTORE TRIF. KW1,5
- 0005020069 TRASFORMATORE GAS FIDA 26/40 50% PM
- 0005040112 PRESSOSTATO KROMSC. DL8K-1
- 0005040226 MOT.NO LANDIS SQN72.6A4A20 BT
- 0011040083 UGELLO MISCELATORE BGN120LX
- 0024010028 QUADRO ELETTRICO TBG 55PN / 150PN
- 0024040013 ELETTRODO TBG 120-150
Specifications
FuelGas
Output240–1200 kW
Supply voltage220 V
Flame tube length450 mm
Flame tube diameter224 mm
Flame tube typestandard
Back pressure (combustion chamber)0–12 mbar
Gas consumption24.1–121 m³/h
Delivery scopewith combustion head, without gas train
Other versions of this seriesBaltur TBG 120 · 8
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBG 120 MC
12 parts · 18590010 - TBG 120 MC MM415 A20C-R6/4
1 part · 18590010-19990548 - TBG 120 ME
12 parts · 17570020 - TBG 120 P
12 parts · 18570010 - TBG 120 P L600
12 parts · FS21901230 - TBG 120 P MM415A20C-R6/4
1 part · 18570010-19990548 - TBG 120 P MM420 B20C-R2
2 parts · 18570010-19990715 - TBG 120 PN
12 parts · 17560010
Questions about Baltur TBG 120 PN parts
Which burner components fit Baltur TBG 120 PN?
These fit Baltur TBG 120 PN: Baltur Gas Pressure Tap 0005150110; Baltur Air damper 0024010012; Baltur Articulated Connection 0024010020. ↑
Which sensors and switches fit Baltur TBG 120 PN?
These fit Baltur TBG 120 PN: Baltur Sensors and switches 0005120134; Baltur Sensors and switches 0005120135. ↑
Which boiler filters, gaskets & seals fit Baltur TBG 120 PN?
These fit Baltur TBG 120 PN: Baltur Gasket 0030010574. ↑
Which cables fit Baltur TBG 120 PN?
These fit Baltur TBG 120 PN: Baltur Cable Entry 0005140469. ↑
Which flues & air ducts fit Baltur TBG 120 PN?
These fit Baltur TBG 120 PN: Baltur Fire Tube 0024030029. ↑
Which impellers fit Baltur TBG 120 PN?
These fit Baltur TBG 120 PN: Baltur Fan Impeller 0024030026. ↑
