Description

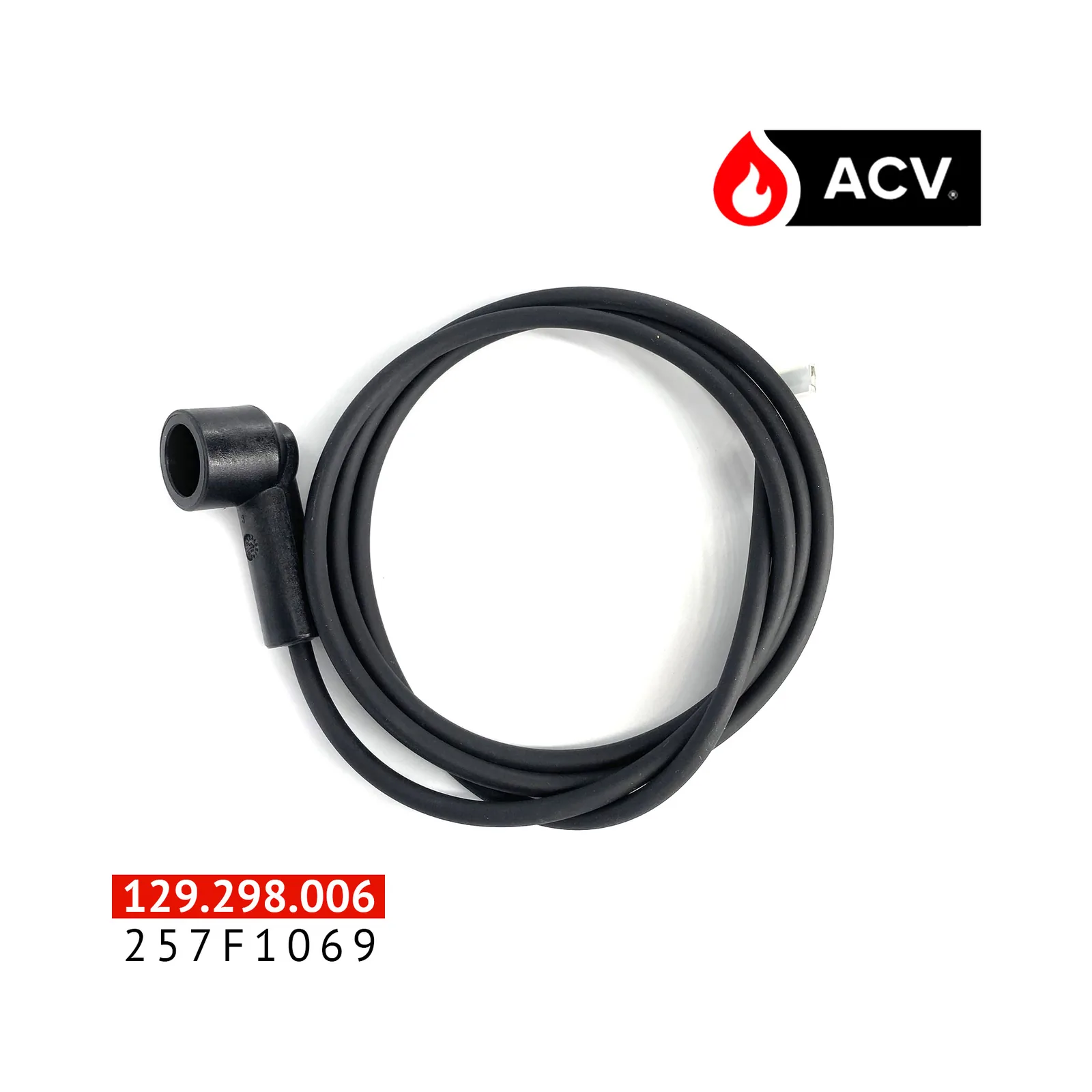

The ACV Ignition cable HM201 (SKU 257f1069) is a 1200 mm silicone-insulated cable designed to connect the ignition transformer to the ignition electrode in ACV burners. It is rated to withstand high voltage and is compatible with ACV HeatMaster 71 TC, Prestige Box Mono 100, and Smart Line SL 50 models.
Choosing and fitting
When selecting a replacement ignition cable of this type, verify the overall length and the connector pattern at both ends to match the terminal types on the transformer and electrode. Ensure the cable is not too short to strain connections or too long to create an inductive path.
Signs of failure
Ignition cables of this kind can fail due to hardening, cracking, or burn marks on the insulation, which may cause spark leakage to ground and mimic a faulty transformer. Check for carbonised tracks on the surface and replace the cable if any damage is visible, even if the transformer appears to spark during bench testing.
