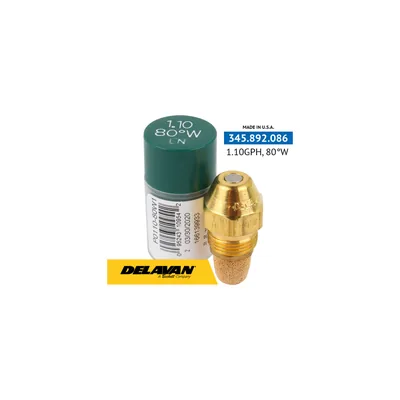

Name: Delavan Oil nozzle 1.10GPH,80W 00110-80W1
Brand: Delavan
SKU: 00110-80W1
Price: 15.61 EUR
Availability: InStock

Key specifications

Flow rate

1.1 GPH

Spray angle

80 °

Spray pattern

Component type

nozzle

Device type

oil nozzles

Fuel dosage function

fuel dose adjustment

Function - fuel spraying

fuel spraying

Function - flame formation

flame formation

Function - fuel economy

fuel economy

Function - emission reduction

reducing emissions

Installation importance

important role in burning fuel

all specifications (11) ↓

Choose a nozzle by its marks

Nozzles of different brands interchange when the marks match: Flow rate, Spray angle, Spray pattern. Set them as on the old nozzle — below are the ones that fit, with price and stock.

Description

The Delavan 00110-80W1 is an oil nozzle with a capacity of 1.1 gallons per hour and a spray angle of 80 degrees. It features a W spray pattern, which is an 'all purpose' type that is neither truly hollow nor solid, and can often replace solid or hollow cone nozzles in the 0.40 to 8.00 GPH range. This nozzle is used in burners for fuel dose adjustment, fuel spraying, flame formation, fuel economy, and reducing emissions. It plays an important role in burning fuel for heating systems and other devices.

Nozzle selection chart

Flow rate	kg/h	45°	60°	70°	80°	90°
0.30	0.95		B
0.40	1.27	B	B W		B
0.50	1.59	W	A B E W		A W
0.55	1.75		B W		W
0.60	1.91	W	B E W	W	W
0.65	2.07	W	B E W		W
0.70	2.23		B W
0.75	2.38	A B W	B W		A W
0.80	2.54		W
0.85	2.70	W	B W	A	A W
0.90	2.86		B W		A
1.00	3.18	W	B W
1.10	3.50	AR	AR B W	AR	AR W
1.20	3.82		B W
1.25	3.97	W	B W		W
1.35	4.29	W	A B W			A
1.50	4.77	A W	A B W		W
1.65	5.25	W	B W
1.75	5.56		B W
2.00	6.36	W	B W		W
2.25	7.15	W	B W
2.50	7.95	W	B W
2.75	8.74	W	B W
3.00	9.54	W	B W			B
3.25	10.33		B W			B
3.50	11.13	A	B W			B
3.75	11.92		B W			B
4.00	12.72		B W		B	B
4.50	14.31	B	B W		W	B
5.00	15.90	W	B W			B
5.50	17.49	B	B W
6.00	19.08	B	B W
6.50	20.67	B W	B W
7.00	22.26		B W
7.50	23.85	B W	B W
8.00	25.44	B W	B W
8.50	27.02	B	B		B
9.00	28.61	B	B		B
9.50	30.20	B	B		B
10.00	31.79	B	B		B
11.00	34.97		B		B
12.00	38.15		B		B
13.00	41.33		B W
14.00	44.51	B	A B
15.00	47.69		A B
17.00	54.05		B
18.00	57.23	A	B
19.00	60.41		B
20.00	63.59	B	B		B
22.00	69.95	B	B		B BPS
24.00	76.31	B	A B		B BPS
26.00	82.66	B	B		B
28.00	89.02	B	B		B
30.00	95.38	B	B		B
32.00	101.74	B	B		B
35.00	111.28	B	B		B
40.00	127.18	B	B		B
45.00	143.07	B	B		B
50.00	158.97	B	B		B

Choosing and fitting

Oil nozzles of this type are selected by matching the flow rate (GPH), spray angle, and spray pattern to the burner's requirements. The nozzle must be compatible with the burner's air pattern and fuel pump pressure. When installing, ensure the nozzle is properly seated and torqued to the manufacturer's specification, and check that the O-ring or gasket is in good condition to prevent leaks.

Signs of failure

Common failure modes for oil nozzles include clogging due to dirt or debris, which can cause uneven flame, soot buildup, or reduced heating efficiency. A worn or damaged nozzle may result in poor atomization, leading to incomplete combustion, increased fuel consumption, or flame instability. If the burner fails to ignite or produces a smoky flame, inspect the nozzle for blockages or wear and replace it if necessary.
