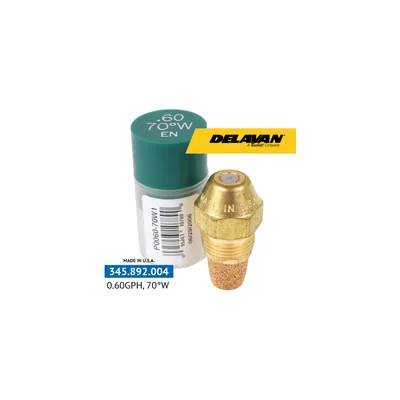

Name: Delavan Oil nozzle 0.60GPH,70W 00060-70W1
Brand: Delavan
SKU: 00060-70W1
Price: 15.61 EUR
Availability: InStock

Key specifications

Flow rate

0.6 GPH

Spray angle

70 °

Spray pattern

Application

burners

Function - fuel economy

higher efficiency and fuel savings

Emission reduction role

reduce emissions

all specifications (6) ↓

Choose a nozzle by its marks

Nozzles of different brands interchange when the marks match: Flow rate, Spray angle, Spray pattern. Set them as on the old nozzle — below are the ones that fit, with price and stock.

Description

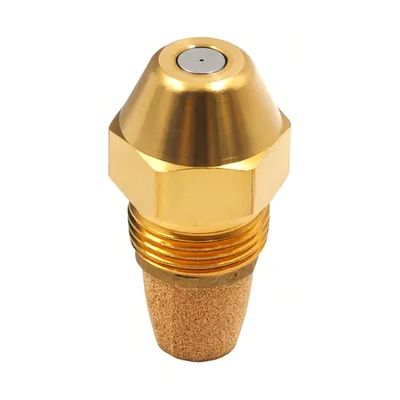

The Delavan oil nozzle 00060-70W1 is a component for burners, designed to atomize fuel into fine droplets for efficient combustion. It has a capacity of 0.6 gallons per hour and a spray angle of 70 degrees, with a W spray pattern. This nozzle contributes to higher efficiency and fuel savings, and helps reduce emissions. It is suitable for use in burner applications.

Nozzle selection chart

Flow rate	kg/h	45°	60°	70°	80°	90°
0.30	0.95		B
0.40	1.27	B	B W		B
0.50	1.59	W	A B E W		A W
0.55	1.75		B W		W
0.60	1.91	W	B E W	W	W
0.65	2.07	W	B E W		W
0.70	2.23		B W
0.75	2.38	A B W	B W		A W
0.80	2.54		W
0.85	2.70	W	B W	A	A W
0.90	2.86		B W		A
1.00	3.18	W	B W
1.10	3.50	AR	AR B W	AR	AR W
1.20	3.82		B W
1.25	3.97	W	B W		W
1.35	4.29	W	A B W			A
1.50	4.77	A W	A B W		W
1.65	5.25	W	B W
1.75	5.56		B W
2.00	6.36	W	B W		W
2.25	7.15	W	B W
2.50	7.95	W	B W
2.75	8.74	W	B W
3.00	9.54	W	B W			B
3.25	10.33		B W			B
3.50	11.13	A	B W			B
3.75	11.92		B W			B
4.00	12.72		B W		B	B
4.50	14.31	B	B W		W	B
5.00	15.90	W	B W			B
5.50	17.49	B	B W
6.00	19.08	B	B W
6.50	20.67	B W	B W
7.00	22.26		B W
7.50	23.85	B W	B W
8.00	25.44	B W	B W
8.50	27.02	B	B		B
9.00	28.61	B	B		B
9.50	30.20	B	B		B
10.00	31.79	B	B		B
11.00	34.97		B		B
12.00	38.15		B		B
13.00	41.33		B W
14.00	44.51	B	A B
15.00	47.69		A B
17.00	54.05		B
18.00	57.23	A	B
19.00	60.41		B
20.00	63.59	B	B		B
22.00	69.95	B	B		B BPS
24.00	76.31	B	A B		B BPS
26.00	82.66	B	B		B
28.00	89.02	B	B		B
30.00	95.38	B	B		B
32.00	101.74	B	B		B
35.00	111.28	B	B		B
40.00	127.18	B	B		B
45.00	143.07	B	B		B
50.00	158.97	B	B		B

Choosing and fitting

When selecting a replacement oil nozzle of this type, ensure the capacity, spray angle, and spray pattern match the burner's requirements. The nozzle must be compatible with the fuel type and operating conditions. Installation involves removing the old nozzle and fitting the new one securely, following the manufacturer's guidelines.

Signs of failure

Common failure modes for oil nozzles include clogging, wear, or damage, which can lead to poor atomization, incomplete combustion, increased fuel consumption, and higher emissions. Symptoms may include soot buildup, uneven flame, or difficulty igniting. Regular inspection and cleaning can help identify issues early.

All specifications
