Name: Monarch Oil nozzle 5.50GPH / 60HO
Brand: Monarch
SKU: 5.50GPH / 60HO

Flow rate

5.5 GPH

Spray angle

60 °

Spray pattern

Choose a nozzle by its marks

Nozzles of different brands interchange when the marks match: Flow rate, Spray angle, Spray pattern. Set them as on the old nozzle — below are the ones that fit, with price and stock.

Description

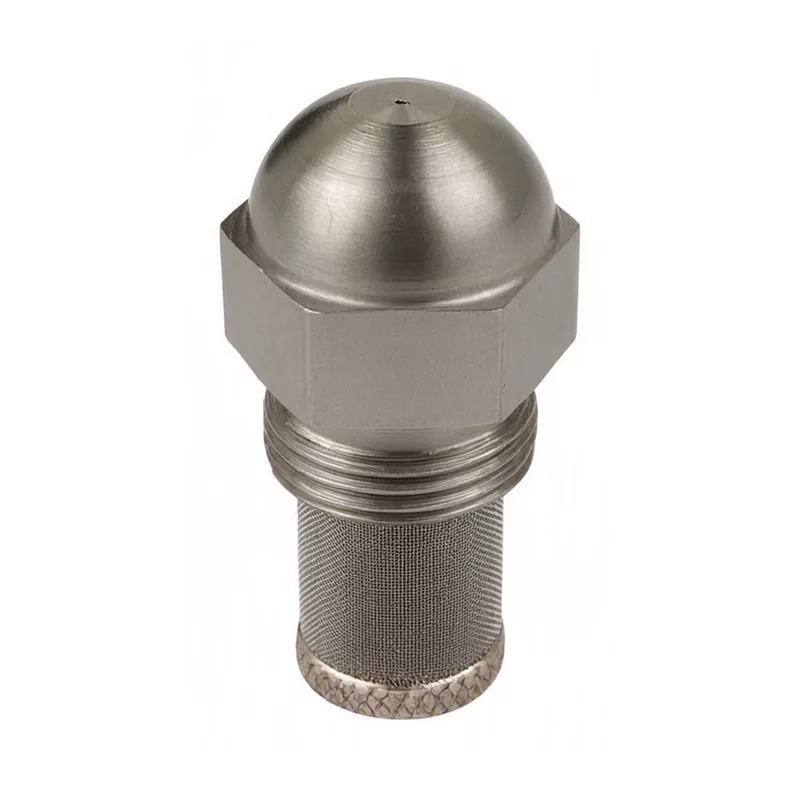

This is an oil nozzle with a flow rate of 5.5 GPH, a 60 ° spray angle and an HO spray pattern. It is fitted to an oil burner, where it atomises the fuel into a spray that is mixed with air and ignited. The 5.5 GPH rating sets the volume of oil delivered per hour at the nozzle's rated pressure. The 60 ° angle defines the width of the resulting spray cone, and the HO pattern defines the distribution of fuel within that cone.

Nozzle selection chart

Flow rate	kg/h	45°	60°	80°
0.40	1.27	R		R
0.45	1.43	R
0.50	1.59	R	R
0.55	1.75	R
0.60	1.91	R
0.65	2.07	R		R
0.75	2.38	R	R
0.85	2.70	R	R
1.00	3.18	R	R	R
1.10	3.50	R
1.20	3.82	R
1.25	3.97	R	R	R
1.35	4.29	R	R
1.50	4.77	R	R	R
1.65	5.25	R	R
1.75	5.56	R
2.00	6.36	R	HO R	PLP R
2.25	7.15	PLP R	PLP R	R
2.50	7.95	PLP R	HO PLP R
3.00	9.54	PLP R	HO PLP R
3.50	11.13	HO PLP R	HO R
4.00	12.72	PLP	BPS PLP
4.50	14.31	PLP	BPS HO PLP	PLP
5.00	15.90	HO PLP	BPS PLP
5.50	17.49	PLP	BPS HO
6.00	19.08	PLP	BPS PLP
6.50	20.67	PLP	BPS PLP
7.00	22.26	PLP	BPS HO PLP
7.50	23.85	PLP	BPS HO
8.00	25.44	PLP	BPS PLP
8.50	27.02	HO PLP	PLP
9.00	28.61	HO PLP	BPS HO	PLP
9.50	30.20	HO PLP	BPS PLP
10.00	31.79		PLP
10.50	33.38	HO PLP	PLP	PLP
12.00	38.15	HO PLP	HO PLP
13.00	41.33	PLP	PLP
13.50	42.92	HO PLP
14.00	44.51	PLP	PLP
15.00	47.69	PLP	HO PLP
15.50	49.28	PLP	PLP
16.00	50.87	PLP
17.00	54.05	PLP	PLP
17.50	55.64	HO
18.00	57.23		PLP
19.50	62.00	HO PLP	PLP
20.00	63.59		PLP
21.50	68.36	PLP	PLP
24.00	76.31	PLP
28.00	89.02	HO PLP
30.00	95.38	HO		PLP
40.00	127.18		PLP	PLP
45.00	143.07			PLP
50.00	158.97			PLP
55.00	174.87		PLP
60.00	190.76			PLP
70.00	222.56			PLP
80.00	254.35			PLP
90.00	286.15			PLP
100.00	317.94			PLP

Choosing and fitting

Nozzles of this type are selected by matching the flow rate, spray angle and spray pattern to the burner's requirements, and by matching the thread and body form to the nozzle adapter. Mounting forms differ between manufacturers and burner series, so the thread size and the length and shape of the body must be compared with the part being replaced before ordering. The nozzle seats against the adapter, and the mating face and any gasket or seal must be clean and undamaged when it is fitted.

Signs of failure

Nozzles of this kind commonly fail through blockage of the internal passages or wear of the orifice, which changes the flow rate and the shape of the spray. On the equipment this appears as poor combustion, smoke, soot deposits, an unstable flame or failure to ignite. Checking the spray pattern, the flow rate and the condition of the nozzle seat is the usual way to confirm whether the nozzle is the cause.
