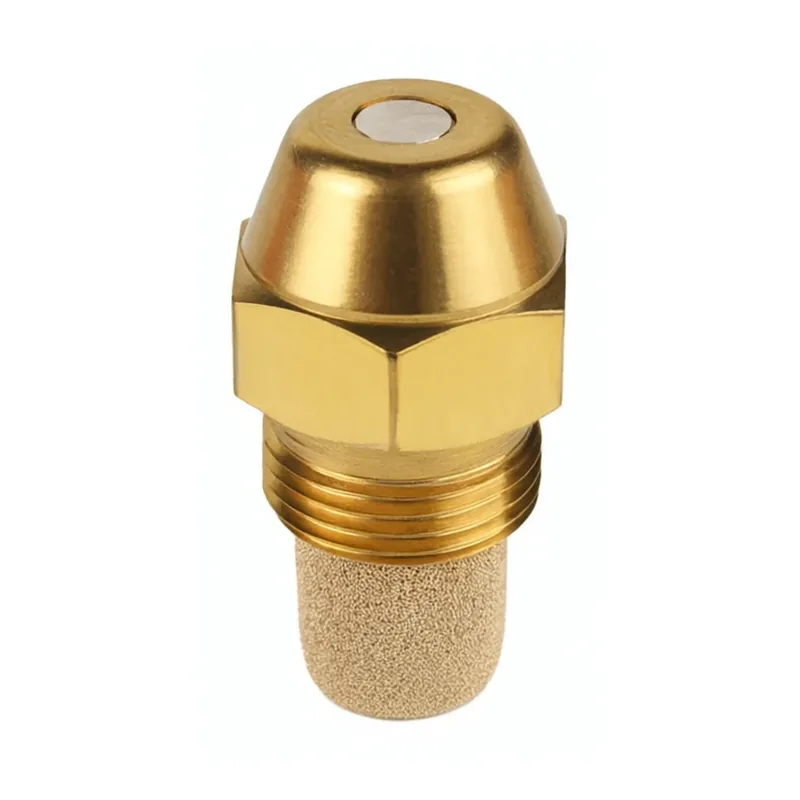

Name: Danfoss Oil nozzle 0.45GPH,80S 030F8906
Brand: Danfoss
SKU: 030F8906

Flow rate

0.45 GPH

Spray angle

80 °

Spray pattern

Description

This is a Danfoss oil nozzle with a flow rate of 0.45 GPH, a spray angle of 80°, and an S spray pattern. It is used in oil burners to atomise fuel into a fine spray for combustion. The 80° angle defines the shape of the spray cone, while the S pattern denotes a solid spray distribution. The nozzle is identified by SKU 030F8906.

Nozzle selection chart

Flow rate	kg/h	30°	45°	60°	80°
0.30	0.95			H S	H S
0.35	1.11			S	S
0.40	1.27		S	H S	H S
0.45	1.43		S	S	H S
0.50	1.59	S	S	H S	H S
0.55	1.75		S	H S	H S
0.60	1.91	S	H S	B H S	B H S
0.65	2.07		B S	B H S	B H S
0.75	2.38	S	B S	B H S	B H S SR
0.85	2.70	S	B H S	B H S SR	B H S
1.00	3.18	S	B S	B H S	B H S
1.10	3.50		S	H S	S
1.20	3.82		S	H S	S
1.25	3.97	S	B S	B H S	B H S
1.35	4.29		B S	B H S	B H S
1.50	4.77	S	B S	B H S	B H S
1.65	5.25		S	H S	H S
1.75	5.56	S	S	H S	S
2.00	6.36	S	B S	B H S	B H S
2.25	7.15	S	B S	B H S	S
2.50	7.95	S	B S	B H S	B S
2.75	8.74		B S	B H S	H S
3.00	9.54	S	B S	B H S	B H S
3.50	11.13		S	S	S
3.75	11.92		B	B	B
4.00	12.72		S	S	S
4.50	14.31		B S	B S	B S
5.00	15.90		B S	B S	B S
5.50	17.49		B S	B S	B S
6.00	19.08		B S	B S	B S
6.50	20.67		B	B	B
7.00	22.26			S
7.50	23.85		B	B	B
8.00	25.44			S
8.50	27.02		B	B	B
9.00	28.61			S
10.00	31.79		B	B	B
11.00	34.97		B	B	B
12.00	38.15		B	B	B
13.50	42.92		B	B	B
15.00	47.69		B	B	B
17.00	54.05			B	B
19.50	62.00			B	B
22.00	69.95		B	B	B
25.00	79.49			B	B
28.00	89.02			B	B
31.50	100.15		B	B	B
35.00	111.28		B

Choosing and fitting

Nozzles of this type are selected by matching the flow rate, spray angle, and spray pattern to the burner manufacturer's specification. The mounting thread and nozzle body dimensions must also match the burner's nozzle adapter. Before ordering, compare the existing nozzle's markings and physical size with the replacement. Installation requires the correct wrench size and careful tightening to avoid damaging the nozzle seat.

Signs of failure

Nozzles of this kind can become clogged, worn, or distorted, leading to poor atomisation. The burner may then produce a smoky flame, fail to ignite, or run erratically. A visible drip from the nozzle after shutdown or a distorted spray pattern indicates replacement is needed. Check the nozzle for debris and compare its spray shape against the specified pattern.
