Danfoss Oil nozzle 1.00GPH,60S 030F6720
SKU 030F6720
Brand Danfoss
Photos
no photo yet
—price on request
on order
shipping calculated at checkout
- Worldwide shipping from stock
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description

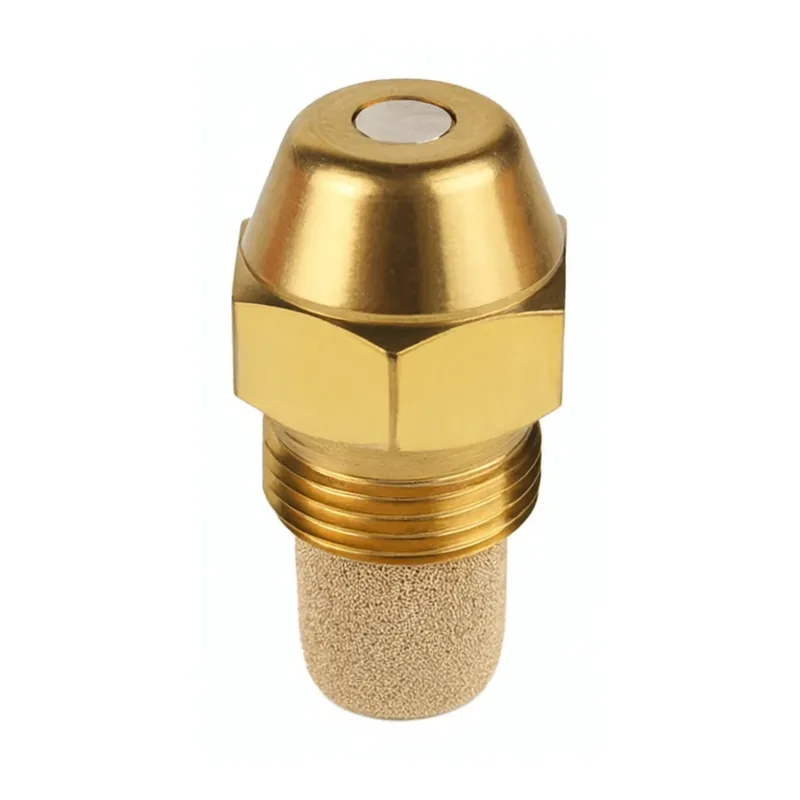

This is a Danfoss oil nozzle with a flow rate of 1 GPH, a 60° spray angle, and an S spray pattern. It is used in oil-fired burners and boilers to atomise fuel oil into a fine spray for combustion. The 60° angle defines the width of the cone the spray forms, and the S pattern denotes a solid spray cone. The nozzle is identified by SKU 030F6720.
Nozzle selection chart
| Flow rate | kg/h | 30° | 45° | 60° | 80° |
|---|---|---|---|---|---|
| 0.30 | 0.95 | HS | HS | ||
| 0.35 | 1.11 | S | S | ||
| 0.40 | 1.27 | S | HS | HS | |
| 0.45 | 1.43 | S | S | HS | |
| 0.50 | 1.59 | S | S | HS | HS |
| 0.55 | 1.75 | S | HS | HS | |
| 0.60 | 1.91 | S | HS | BHS | BHS |
| 0.65 | 2.07 | BS | BHS | BHS | |
| 0.75 | 2.38 | S | BS | BHS | BHSSR |
| 0.85 | 2.70 | S | BHS | BHSSR | BHS |
| 1.00 | 3.18 | S | BS | BHS | BHS |
| 1.10 | 3.50 | S | HS | S | |
| 1.20 | 3.82 | S | HS | S | |
| 1.25 | 3.97 | S | BS | BHS | BHS |
| 1.35 | 4.29 | BS | BHS | BHS | |
| 1.50 | 4.77 | S | BS | BHS | BHS |
| 1.65 | 5.25 | S | HS | HS | |
| 1.75 | 5.56 | S | S | HS | S |
| 2.00 | 6.36 | S | BS | BHS | BHS |
| 2.25 | 7.15 | S | BS | BHS | S |
| 2.50 | 7.95 | S | BS | BHS | BS |
| 2.75 | 8.74 | BS | BHS | HS | |
| 3.00 | 9.54 | S | BS | BHS | BHS |
| 3.50 | 11.13 | S | S | S | |
| 3.75 | 11.92 | B | B | B | |
| 4.00 | 12.72 | S | S | S | |
| 4.50 | 14.31 | BS | BS | BS | |
| 5.00 | 15.90 | BS | BS | BS | |
| 5.50 | 17.49 | BS | BS | BS | |
| 6.00 | 19.08 | BS | BS | BS | |
| 6.50 | 20.67 | B | B | B | |
| 7.00 | 22.26 | S | |||
| 7.50 | 23.85 | B | B | B | |
| 8.00 | 25.44 | S | |||
| 8.50 | 27.02 | B | B | B | |
| 9.00 | 28.61 | S | |||
| 10.00 | 31.79 | B | B | B | |
| 11.00 | 34.97 | B | B | B | |
| 12.00 | 38.15 | B | B | B | |
| 13.50 | 42.92 | B | B | B | |
| 15.00 | 47.69 | B | B | B | |
| 17.00 | 54.05 | B | B | ||
| 19.50 | 62.00 | B | B | ||
| 22.00 | 69.95 | B | B | B | |
| 25.00 | 79.49 | B | B | ||
| 28.00 | 89.02 | B | B | ||
| 31.50 | 100.15 | B | B | B | |
| 35.00 | 111.28 | B |
Choosing and fitting
Nozzles of this type are selected by matching the flow rate, spray angle, and spray pattern to the burner manufacturer's specification. The mounting form and thread must match the nozzle holder, and the nozzle seat must be clean and undamaged before fitting. Before ordering, compare the markings on the old nozzle with the required values for the appliance.
Signs of failure
Nozzles of this kind commonly fail by clogging, wear of the orifice, or a distorted spray pattern. The equipment may then show poor combustion, smoke, soot deposits, a pulsating flame, or failure to ignite. Check the nozzle for blockage or damage and compare the spray pattern against the specification before replacing it.
All specifications
| Flow rate | 1 GPH |
|---|---|
| Spray angle | 60 ° |
| Spray pattern | S |
Part numbers
| SKU | 030F6720 |
|---|
